Red Rubber Sheathed Cable With Mobile Metal Shield Monitoring Soft Cable

voltage 8.7 / 10kv and below the mine with mobile metal shield monitoring soft cable

1. USE

This product is used for mining rubber sleeve soft cable series products.Suitable For rated voltage of 3.6 / 6kv underground mobile transformers and similar devices do power connection

2. Conditions of Use

The core allows a long working temperature of 85 degrees and the minimum bend radius of the wire is 6 times the cable diameter. Red sheath cable should not be exposed to the sun for a long time.

3. Model name and usage

Model	Name	USE
MYPTJ-3.6/6	Mine mobile metal shield monitoring of rubber cables	Rated voltage of 3.6 / 6kv underground mobile transformers and similar equipment, power connections
MYPTJ-6/10	Mine mobile metal shield monitoring of rubber cables	Rated voltage of 6 / 10kv underground mobile transformers and similar equipment, power connections
MYPTJ-8.7/10	Mine mobile metal shield monitoring of rubber cables	Rated voltage of 8.7/10kv underground mobile transformers and similar equipment, power connections

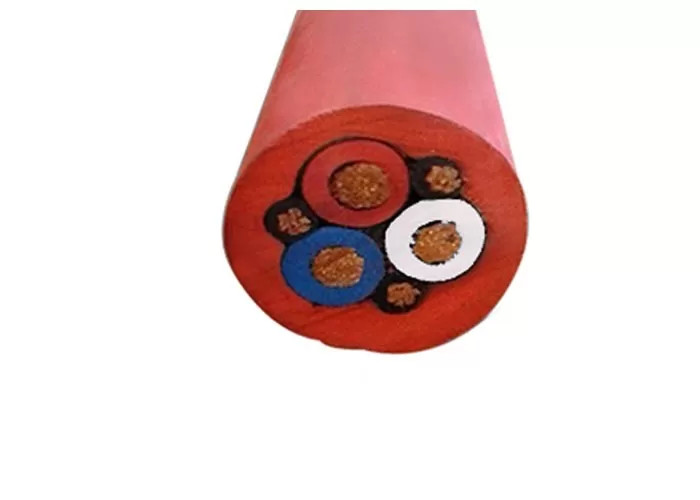

16-150Mm2 Red Flexible Rubber Cable H07RN-F For Electrical 0

Type	Name	Power cores No.	Cross section of power cores (mm2)	Rated voltage	Rated temp.	Min. bending radius	Executive standard	Application
MC-0.38/0.66	Rubber sheathed flexible cable for coal mining machine	3	16~50	0.38/0.66	60ºC	6 times of cable diameter 6 times of cable diameter	MT-818.2-1999&IEC	The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3 and below.
MCP-0.66/1.14	Shield rubber sheathed flexible cable for coal mining machine	3	35/50~95	0.66/1.14	60ºC
MCP-1.9/3.3	Shield rubber sheathed flexible cable for coal mining machine	3	35~95	1.9/3.3	90ºC
MCPT-1.9/3.3	Metal shield rubber sheathed flexible cable for coal mining machine.	3	35~95	1.9/3.3	90ºC			The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3KV and below
MCPTJ-1.9/3.3	Metal shield surveillance-type rubber sheathed flexible cable for coal mining machine.	3	35~95	1.9/3.3	90ºC
MY-0.38/0.66	Rubber sheathed movable flexible cable for coal mine	3+1	4~70	0.38/0.66	65ºC			The cables are suitable for all kinds of movable equipment in coal mining as power connecting wire rated voltages 0.66/1.14KV and below
MYP-0.66/1.14	Rubber sheathed screened movable flexible cable for coal	3+1	10~95	0.66/1.14	65ºC
MYPTJ-3.6/6	Flexible rubber-sheathed cables with metallic screens and monitoring core for coal mine	3	16/3~25/3	3.6/6	90ºC			The cables are suitable for power connecting wiring of movable transformers and similar equipments in mine, rated voltage 3.6/6KV
MZ-0.3/0.5	Rubber sheathed cable for electric drill	3+1	2.5~4	0.3/0.5	65ºC			The cables are suitable for electric drill in coal mine as power connecting wiring, rated voltage is 0.3/0.5KV.
MZ-0.3/0.5	Rubber sheathed cable screened for electric drill	3+1	2.5~4	0.3/0.5	65ºC
MYQ-0.3/0.5	Rubber sheathed light-duty movable flexible cable for coal mine	2~4	1.0~2.5	0.3/0.5	65ºC			The cables are suitable for light in laneway, interlock of transportation machine and equipments of control and signal with rated voltage 0.3/0.5KV.
MYQ-0.3/0.5	Rubber sheathed light-duty movable flexible cable for coal mine	7&12	1.0~2.5	0.3/0.5	65ºC
MVV-0.6/1	Copper core PVC insulation and sheath flame retardant power cable for coal mine	3	1.5~300	0.6/1	70ºC	16 times of cable diameter r		The cables are used as power transmission line with rated voltage 0.6/1KV. They are suited to fixed laid in coal mine
MVV22-0.6/1	Copper core PVC insulation and sheath double-deck tape armored flame retardant power cable for coal mine	3 3+1 4	2.5~300 4~185 4~300	0.6/1	70ºC
MVV32-0.6/1	Copper core PVC insulation and sheath steel wire armored flame retardant power cable for coal mine	3	4~300	0.6/1	70ºC
MYJV-0.6/1	Copper core XLPE insulation and PVC sheath flame retardant power cable for coal mine	3	1.5~300	0.6/1	90ºC
MYJV22-0.6/1	Copper core XLPE insulation and PVC sheath double-deck flame retardant power cable for coal mine	3 3+1	4~300	0.6/1	90ºC
MYJV32-0.6/1	Copper core XLPE insulation and PVC sheath steel wire armored flame retardant power cable for coal mine	3	4~300	0.6/1	90ºC

The above parameters are only part of the parameters, for reference only.

FAQ:

Q1. Can I have a sample order for cable?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production needs 2-3 weeks .

Q3. Do you have any MOQ limit for cable?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for yolarlink cable?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new cable with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

▼ Payment:

We usually use T/T

T/T deposit before production and balance when shipment.

Payment terms: Western Union, Escrow, Paypal, T/T, L/C

Service

1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.

▼ CNAS Labortory

3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,

including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,

High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.

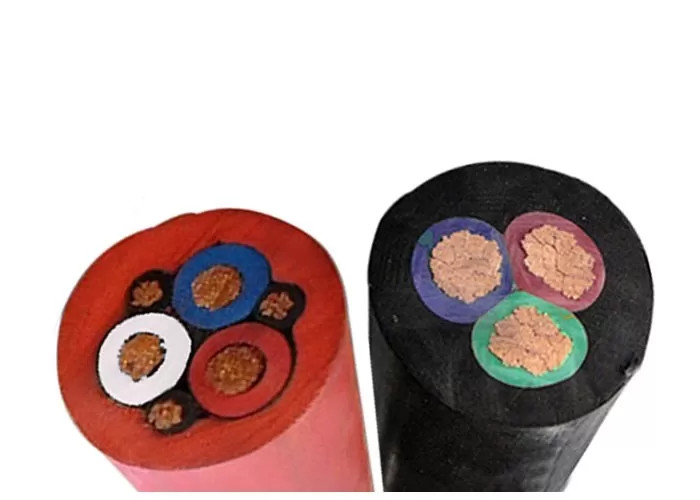

16-150Mm2 Red Flexible Rubber Cable H07RN-F For Electrical 1

Tag:

Place of Origin:	CHINA
Brand Name:	DONGJIAXIN
Certification:	ISO,CE,IEC,TUV,KEMA
Model Number:	H07RN-F /

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden drums according to quantity and container or required
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T,
Supply Ability:	100KM/Week

Model Name:	H07RN-F	Conductor Type:	Flexible Copper Conductor
High Light:	Rubber Insulated Cable, Rubber Electrical Cable	Size:	16-150 Mm2
Sheath:	Rubber	Application:	Mining
Standard:	IEC 60502-2,IEC 60228	Insulation:	Rubber
Highlight:	KEMA 150Mm2 Flexible Rubber Cable , KEMA H07RN-F Flexible Rubber Cable , KEMA 16Mm2 rubber electrical cable
