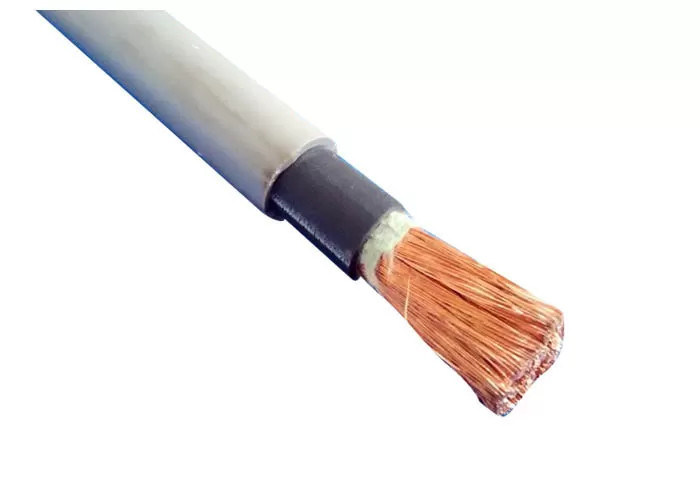

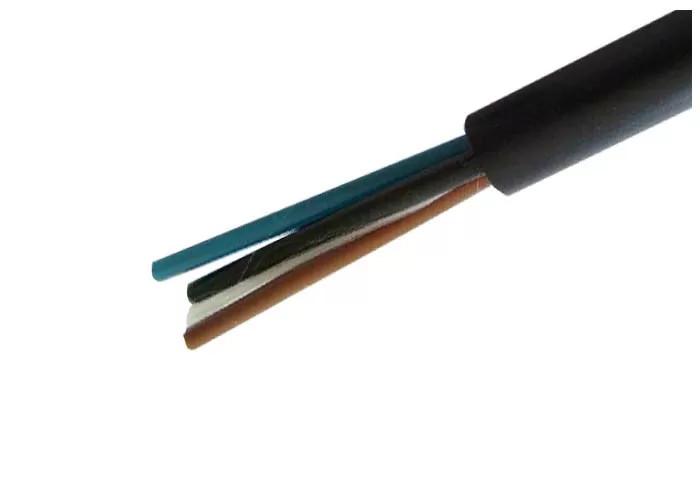

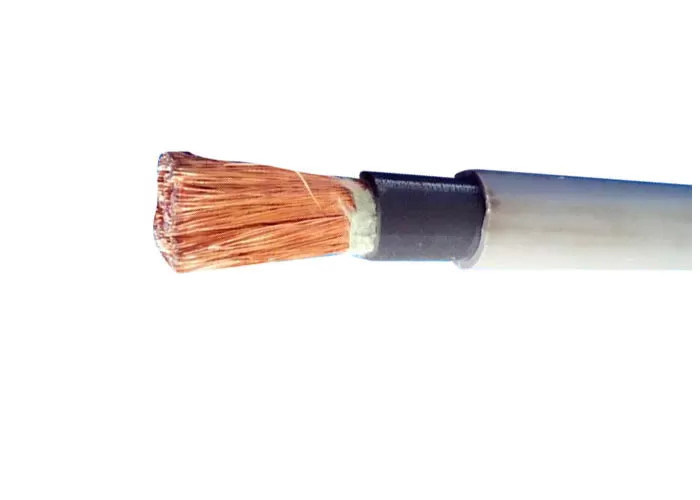

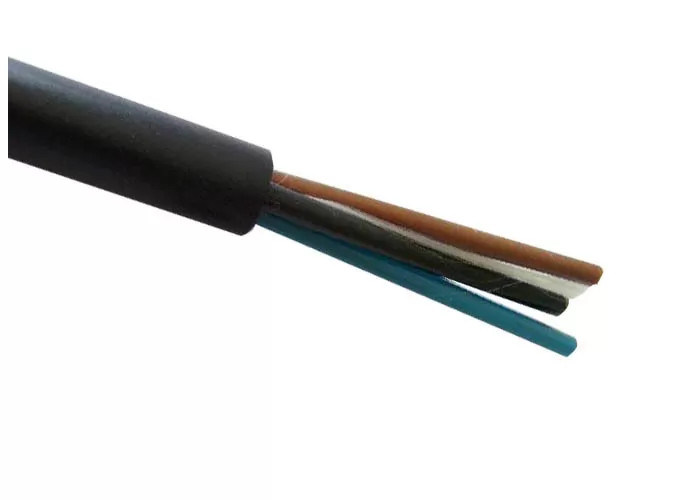

Soft Rubber Insulated Cold resistant Cable, Rubber sheath Power Cable
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Sheath Color:
Black
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H03RN-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Rubber copper wire Working Conditions
1. Rated voltage :300/300(h03rn-f type),300/500(h05rn-f type),450/750V(h07rn-f type)
2. The long-term working temperature of conductor should be no longer than 65°C
3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Cross-Sectional
Area mm2
Number diameter of core
Overall Diameter
Max.D.C resistance
of at 20℃
MΩ/km
Approx Weight
(kg/km)
min
max
2x0.3
16/0.15
4.3
5.8
69.2
71.2
30
31.5
2x0.5
28/0.15
4.8
6.4
39
40.1
43
45.5
3x0.3
16/0.15
4.6
6.1
69.2
71.2
36
38.5
3x0.5
28/0.15
5.1
6.7
39
40.1
74
77
Tag:
rubber insulated cable,
rubber electrical cable,
rubber coated cable
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
FAQ
* How to assure the quality of products?
1. Most of our products have certification.
2. Our Lab staff will test the material and check the process card before production.
3. The O.D tester is testing all the time during production, and the production line is always under control.
4. The product will be tested by Lab staff after production.
* Do you offer free samples or not?
1. If we have inventory about the sample you need and the total amount is not large, it's free.
2. If we don't have inventory, according to our company's rule, sample and freight costs need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.
* When I want customized products, how to do it?
We have professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings or samples are required. Of course, the purchased quantity should meet our MOQ.
