| Brand Name: | JIAXIN |
| Model Number: | H07RN-F YC YCW |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T,, Western Union, MoneyGram |
| Supply Ability: | 100KM/Week |

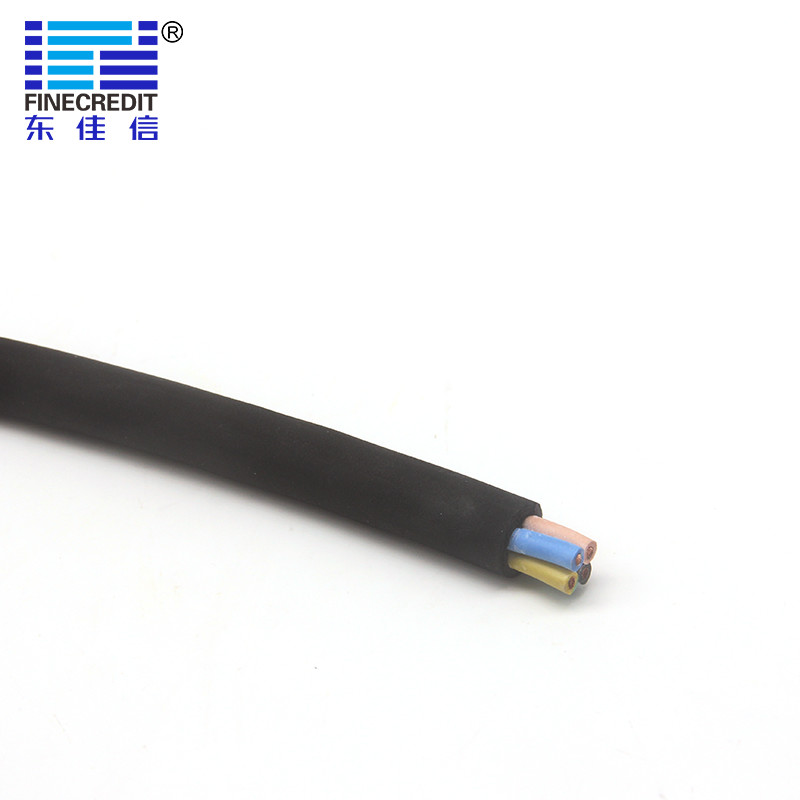

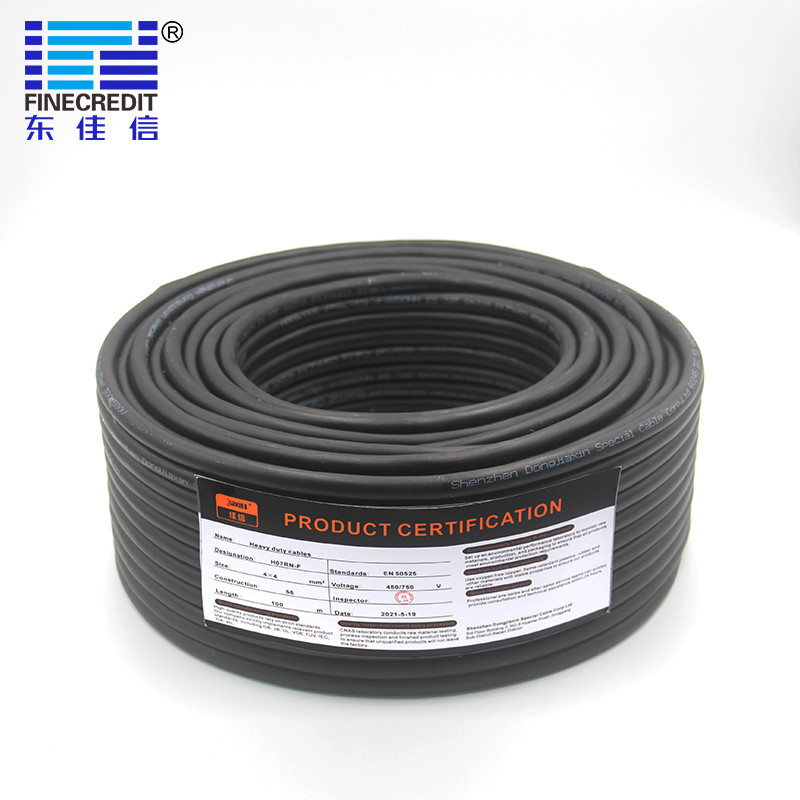

H07RN-F Copper Conductor Rubber Insulated and Rubber Jacket Electrical Cable
▼ Application:
The cables are intended for a variety of applications where appliances or equipment, including heavy industrial equipment, require a flexible connection to power supply.
▼ Constraction:
| Core Conductor | Stranded bare copper |
| Popular sizes | 2~5 core x 1.0~6mm² |
| Insulation | Rubber Compound |
| Jacket | Rubber Compound |
| Temperature rating | -40C up to +60℃ |
| Voltage suitable | 450/750V |
| Approval | VDE CE CB CCC |
▼ Advantage:
oil - resistant, UV resistant , flexible to power supply.
▼ Standards&Certificates:
DIN EN 50525-2-21 (VDE 0285-525-2-21):2012-01; EN 50525-2-21:2011 ; IEC 60245.
▼ Technical parameters:
| Cross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×1 | 32/0.19 | 0.8 | 1.3 | 8.4±0.2 | 19.5 |
| 2×1.5 | 30/0.24 | 0.8 | 1.5 | 9.3±0.2 | 13.3 |
| 2×2.5 | 49/0.24 | 0.9 | 1.7 | 11.0±0.2 | 7.98 |
| 2×4 | 56/0.29 | 1.0 | 1.8 | 12.8±0.2 | 4.95 |
| 2×6 | 84/0.29 | 1.0 | 2.0 | 14.4±0.2 | 3.30 |
| 3×1 | 32/0.19 | 0.8 | 1.4 | 9.0±0.2 | 19.5 |
| 3×1.5 | 30/0.24 | 0.8 | 1.6 | 10.0±0.2 | 13.3 |
| 3×2.5 | 49/0.24 | 0.9 | 1.8 | 11.8±0.2 | 7.98 |
| 3×4 | 56/0.29 | 1.0 | 1.9 | 13.7±0.2 | 4.95 |
| 3×6 | 84/0.29 | 1.0 | 2.1 | 15.4±0.2 | 3.30 |
| 4×1 | 32/0.19 | 0.8 | 1.5 | 10.0±0.2 | 19.5 |
| 4×1.5 | 30/0.24 | 0.8 | 1.7 | 11.0±0.2 | 13.3 |
| 4×2.5 | 49/0.24 | 0.9 | 1.9 | 13.0±0.2 | 7.98 |
| 4×4 | 56/0.29 | 1.0 | 2.0 | 15.1±0.2 | 4.95 |
| 4×6 | 84/0.29 | 1.0 | 2.3 | 17.2±0.2 | 3.30 |
| 5×1 | 32/0.19 | 0.8 | 1.6 | 11.0±0.2 | 19.5 |
| 5×1.5 | 30/0.24 | 0.8 | 1.8 | 12.1±0.2 | 13.3 |
| 5×2.5 | 49/0.24 | 0.9 | 2.0 | 14.3±0.2 | 7.98 |
| 5×4 | 56/0.29 | 1.0 | 2.2 | 16.8±0.2 | 4.95 |
| 5×6 | 84/0.29 | 1.0 | 2.5 | 19.0±0.2 | 3.30 |
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
