| Brand Name: | DONGJIAXIN |
| Model Number: | SFTP CAT6 Cable |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

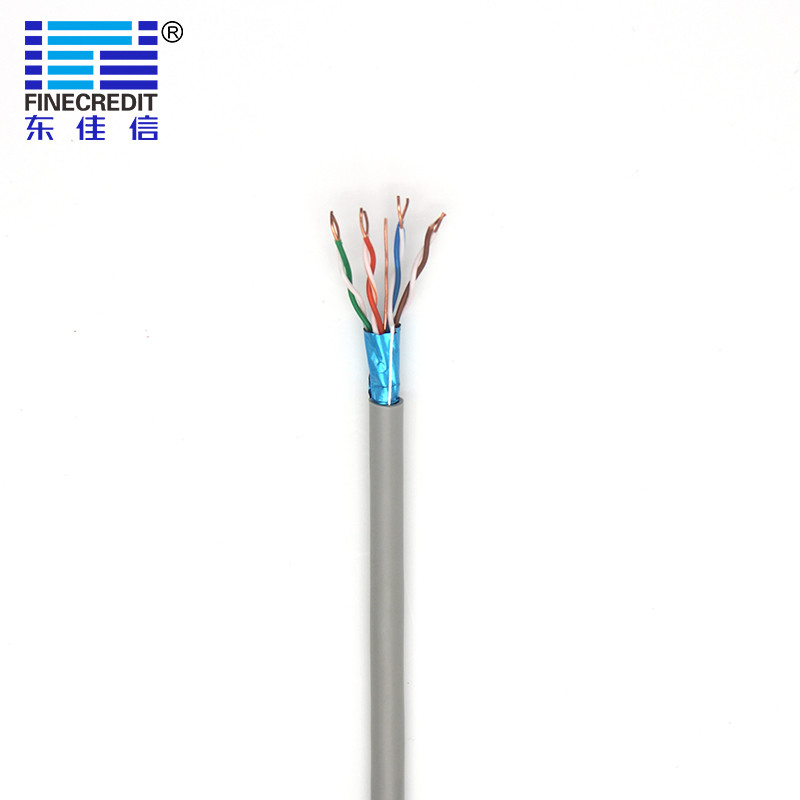

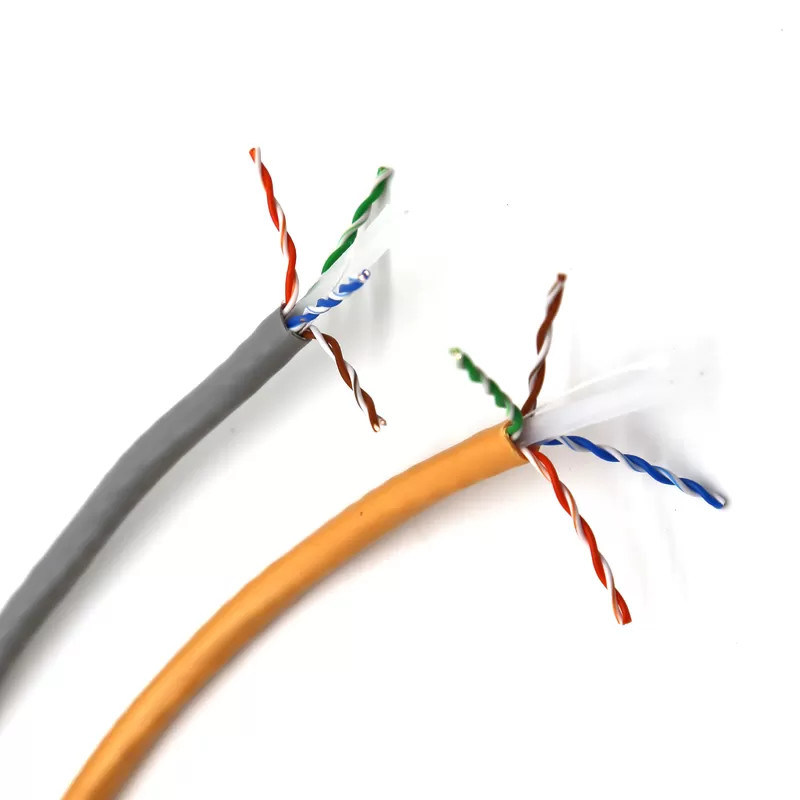

23AWG Ethernet Lan Cable Aluminum Foil Cat6 Sftp Outdoor Cable
Description:
1. Item Name:SFTP CAT6 Cable
2. Number of Conductors:23AWG / 4Pairs
3. Operating temperature:70℃
4. Certificate:CE
5. Standard:YD/T 1019-2013,ANSI/TIA-568-C.2
6. Insulation Material:HDPE
7. Jacket:PVC / LSZH
Electric Requirement :
| Characteristic Impedence(Zo) | 85~115Ω (1~500MHz) |
| DC.Resistance Capacitance Unbalance | 0.02 |
| Pair-To-Ground Capacitance Unbalance | 330 pF / 100m Max |
| Conductor Resistance | 7.32Ω / 100m 20℃ Max |
| Mutual Capacitance | 5600 pF / 100m Maximum |
| Spark Test | 2.5KV |
| Nomianal Velocity Of Propagation(N.V.P) | 0.74 |
Advantages:
1. The conductor is made of high-quality oxygen-free copper, the insulation is made of imported HDPE, and
the wire is environmentally friendly.
2. The product adopts tandem production line, drawing insulation and integral molding, with a concentricity
of more than 90%.
3. Reduced attenuation and less crosstalk. The maximum transmission rate is 250Mbps.
4. The transmission performance meets and is better than Category 6 standards, and fully supports Gigabit
Ethernet applications.
Application:Office,Hotel,Home,Net bar.
Testing process
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
