| Brand Name: | DONGJIAXIN |
| Model Number: | Cat 5e |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
Production Description:
1. Production Parameters
|
Item (n) |
structure (mm) |
Insulation Thickness (mm) |
Approx overall dia. (mm) |
| FTP Cat 5e | 4x0.48 | 0.92 | 6.4 |
| FTP Cat 5e | 4x0.50 | 0.94 | 6.5 |
| FTP Cat 5e | 4x0.52 | 0.96 | 6.5 |
2. Production Features
| Rated Temperature | 60℃, 75℃ ,90℃ |
| Installation Temperature | -10℃ - +70℃ |
| Minimum bending radius | 8D |
| Application | 100 Base-TX, 100VG-Anylan, 1000 Base-T(Gigabit Ethernet),ATM, Noisy Environments |
4. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
5. Application
Category 5 (CAT 5E) are structured cabling for computer networks such as Ethernet. Their specification cover their construction, performance characteristics and test requirements.
6. Tabular data
Construction
 |
1. Conductor material: | Solid bare copper 0.50mm |
| 2. Insulation material: | HDPE (High density Polyethylene) | |
| 3.Shielding material: | AL, AM,TC | |
| 3. sheath material: | PVC | |
| 4. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 11.1 kg | 305 m per box | 42 x 42 x 24 | Carton box |

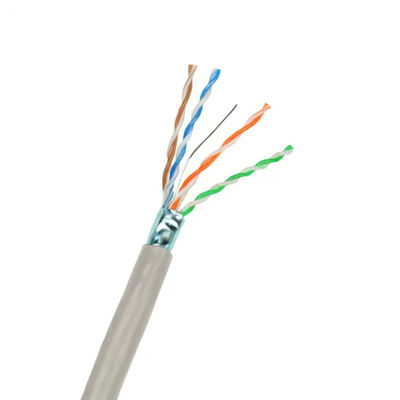

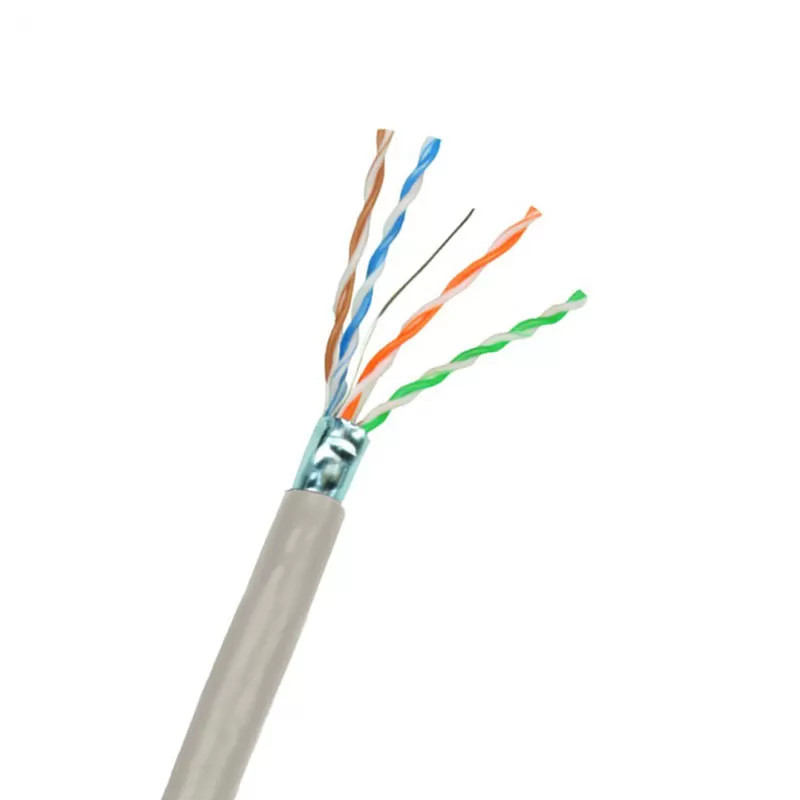

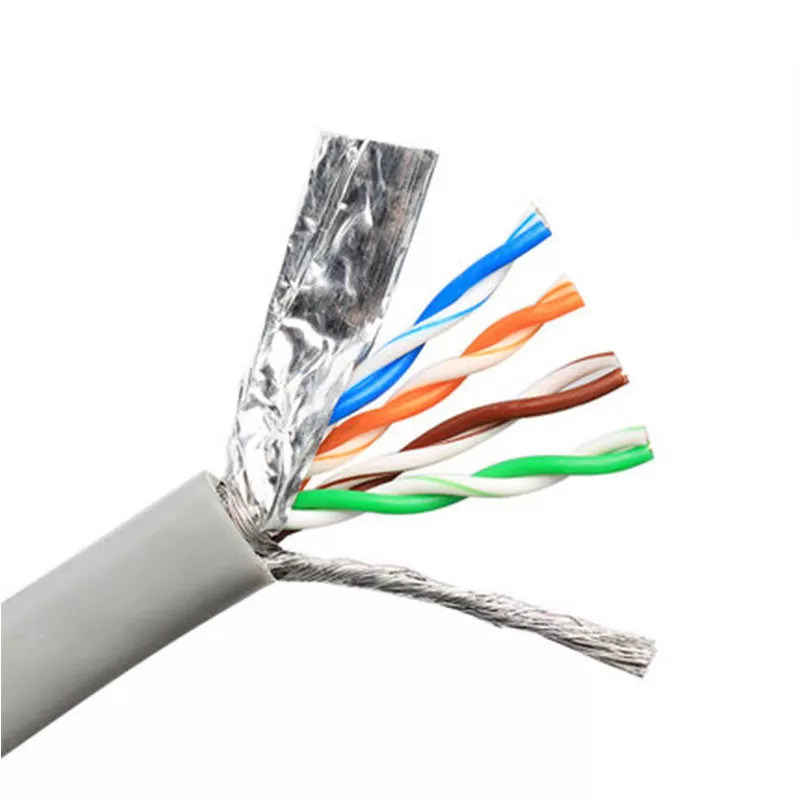

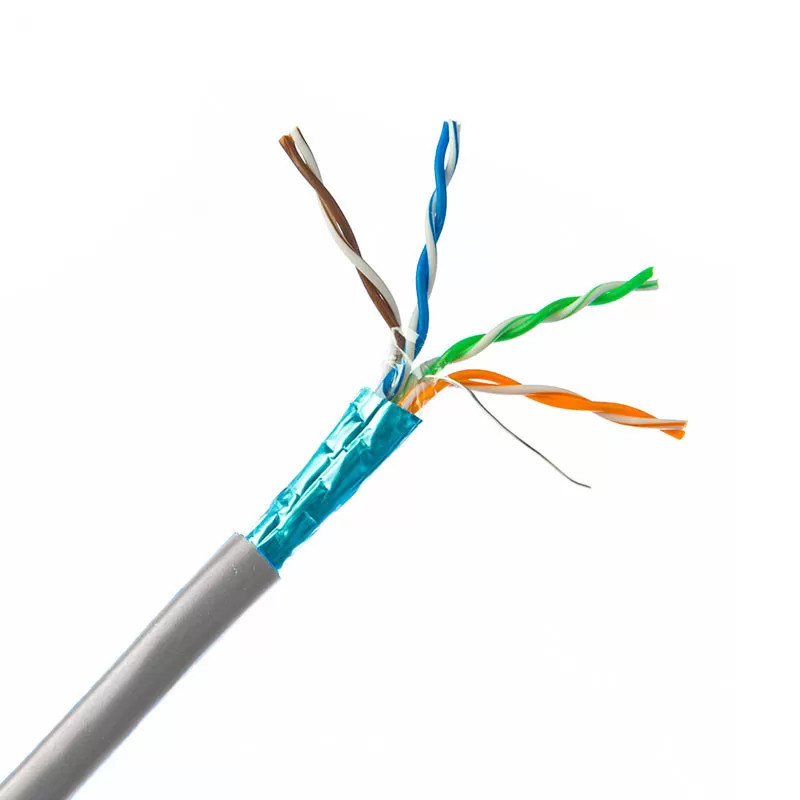

7. Product Image
Product Package
Packging details
 |
 |
 |
|
– Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2) |
–Electrical wire ready to delivery |
–Reel / Drum (as of 35 mm2) –Other package as required |
▼ CNAS Labortory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
