| Brand Name: | JIAXIN |
| Model Number: | CAT6 Cable |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
Application:
These are structured cables for campus, riser and horizontal installations. Suitable for Ethernet Applications
and compatible with all known connection systems. Ideal for high performance workstation applications including
voice/ data systems, digital video, broadband and voice over internet protocol, etc.
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1,10,100,250MHz | Max. 570, 545, 538 & 536 ns/100 m |
| Propagation Delay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Features:
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |

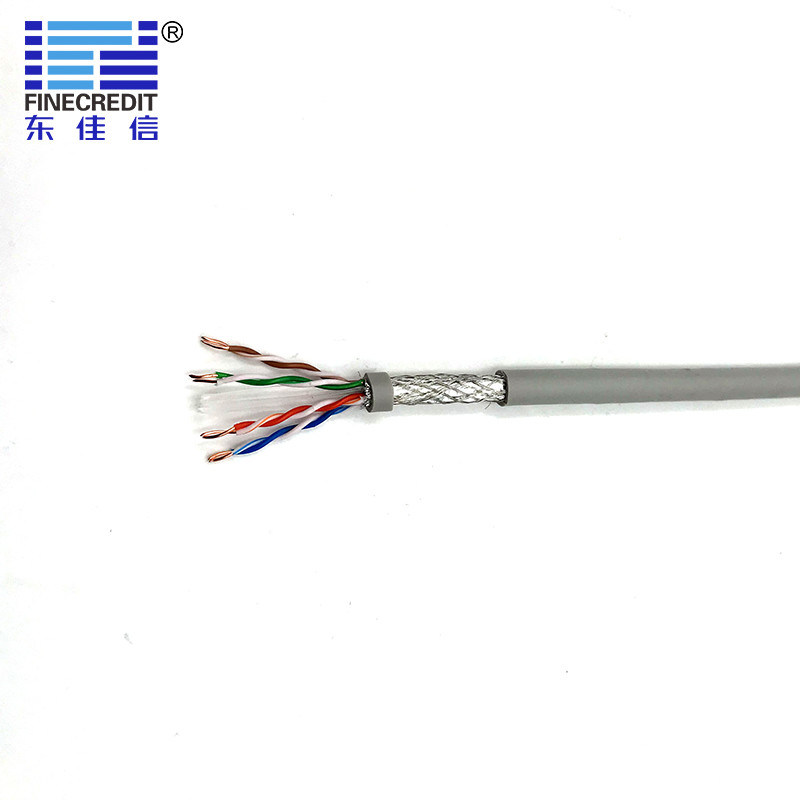

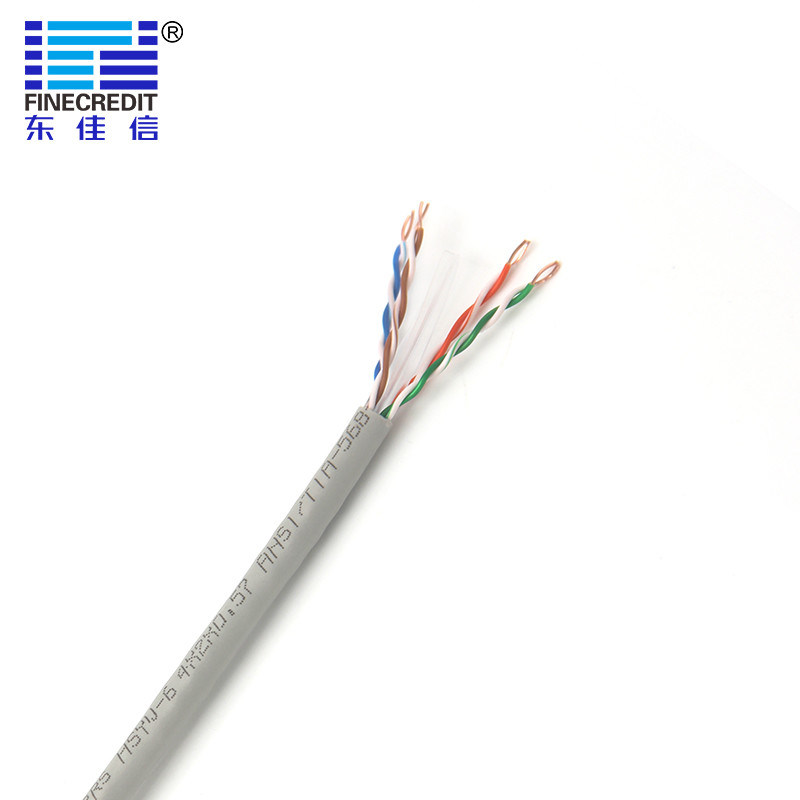

Construction
 |
1. Conductor material: | Solid bare copper 0.57mm (23 AWG) |
|
2. Insulation material: |
HDPE (High density Polyethylene) |
|
| 3. Outer sheath material: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |
Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.
Packaging details
|
|
|
|
– Coil in foil 100m (as of 10 mm2) – Coil in cardboard (100m) as required (up to 6 mm2) |
–Electrical wire ready for delivery |
–Reel / Drum (as of 35 mm2) –Other packages as required |
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
Testing process
