| Brand Name: | JIAXIN |
| Model Number: | H03VV-F、RVV |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 100KM/WEEK |
▼ Application:
home.house Decoration.Signal equipment.air conditioner.Refrigerator household.electrical equipment.auto.switch.Washing Machine.house Decoration.electrical device.lighting.outlet.auto.
Home improvement.house wiring.automobile.water heater. house.house Decoration.equipment.automotive.
▼ Constraction:

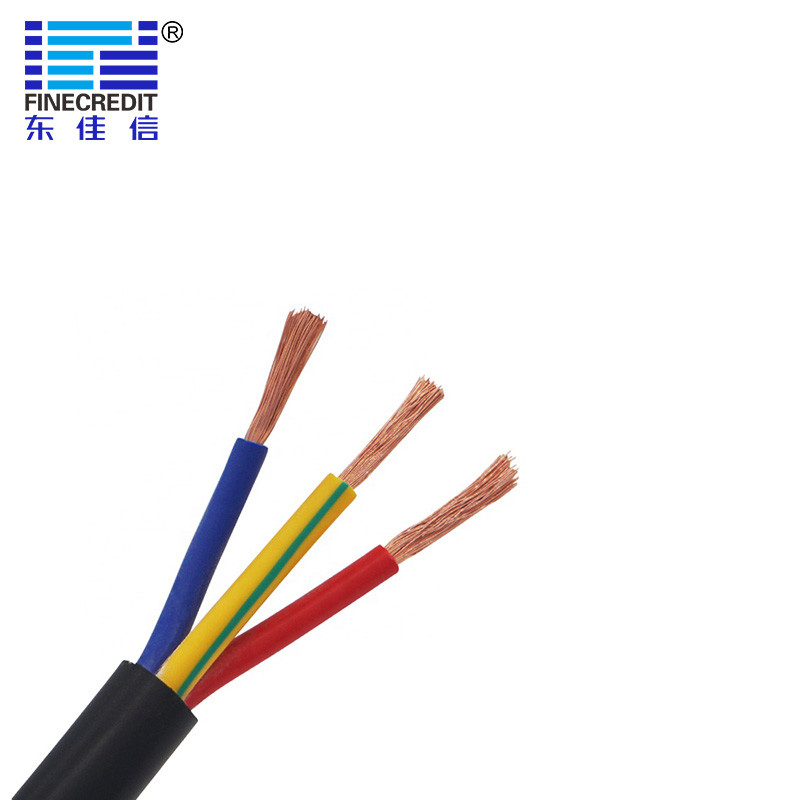

1. Core Conductor: Stranded bare copper
2. Popular sizes: 2~4 core × 0.5~0.75mm²
3. Insulation&Jacket : PVC
4. Other specs:
a) Temperature rating: -15C up to +70℃
b). Fire performance: EN 50525-2-11:2011 ; IEC 60227
c). Approval: VDE CE CB CCC
d). Voltage suitable: 300/500V
Insulation is anti-oxidation and anti-aging, using native environmentally friendly polyvinyl chloride, not easy to deform and wear.
water resistant.flame retardant.waterproof.Fireproof sun-proof.
flame retarded.sun-resistant.fire retardant Environmental.
▼ Standards&Certificates:
The production standard for anti-flaming and fire-resistant cables is EN 50525-2-11:2011 ; IEC 60227
▼ Technical parameters:
| Cross section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Sheath thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×0.75 | 24 | 0.6 | 0.8 | 6.3 | 26.0 |
| 2×0.75 | 24 | 0.6 | 0.8 | 4.0×6.4 | 26.0 |
| 2×1 | 32 | 0.6 | 0.8 | 6.7 | 19.5 |
| 2×1 | 32 | 0.6 | 0.8 | 4.2×6.8 | 19.5 |
| 2×1.5 | 30 | 0.7 | 0.8 | 7.7 | 13.3 |
| 2×2.5 | 49 | 0.8 | 1.0 | 9.3 | 7.98 |
