| Brand Name: | DONGJIAXIN |
| Model Number: | WDZ-YJY |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |

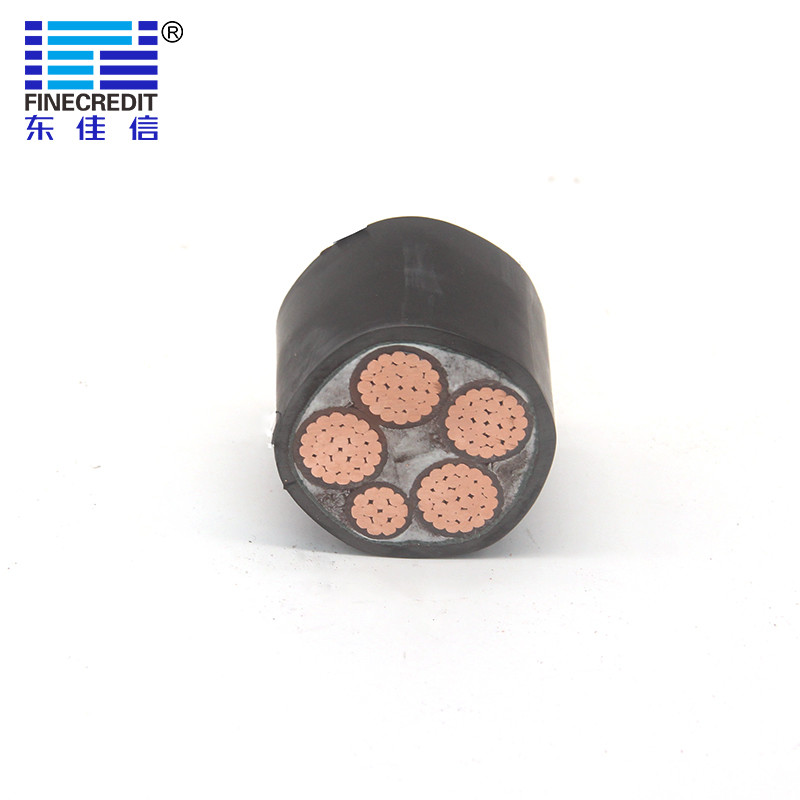

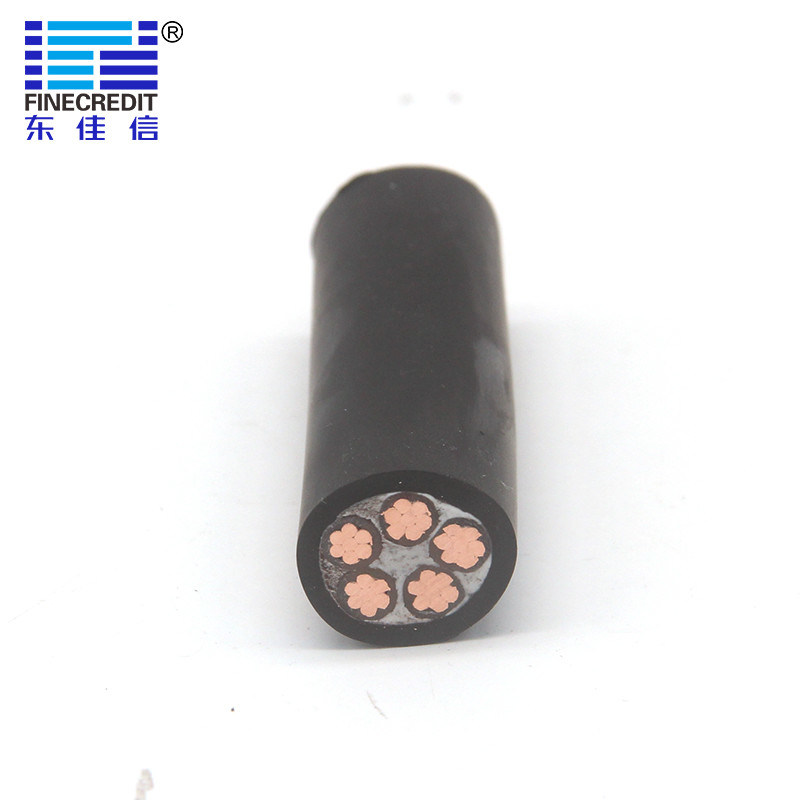

▼Low price high quality cu xlpe power cable 3*35+2*16mm2 power cable for sale
● Constraction:
| Core Conductor | annealed copper (stranded core) |
| Popular sizes | 2~5 core x1.5~630mm² |
| Insulation | XLPE |
| Jacket | LSZH |
| Voltage suitable | 0.6/1kV |
| Fire performance: | IEC 60332-1 |
| Approval | QS in China |
● Advantages and applications:
1. Low-smoke halogen-free flame-retardant cables are difficult to catch fire and have the ability to prevent or spread. Moreover, once a fire occurs, it has the characteristics of halogen-free, low-smoke, non-toxic, and non-corrosive.
It is suitable for high-rise buildings, hotels, hospitals, subways, nuclear power plants, tunnels, power plants, mines, petroleum, chemical industries, etc.
2. In addition to meeting the characteristics of low-smoke, halogen-free and flame-retardant cables, low-smoke halogen-free fire-resistant cables can also meet line power supply capabilities under fire conditions.
Mainly used in fire alarm, fire fighting equipment, smoke exhaust equipment, and emergency channel transportation, lighting and other emergency facilities in the power supply line where fire resistance is required.
● Technical parameters:
3+2 core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 3×6+2×4 | 1 | 0.7 | 1.8 | 13.9 | 3.08 |
| 3×10+2×6 | 7 | 0.7 | 1.8 | 16.2 | 1.83 |
| 3×16+2×10 | 7 | 0.7 | 1.8 | 19.0 | 1.15 |
| 3×25+2×16 | 7 | 0.9 | 1.8 | 22.6 | 0.727 |
| 3×35+2×16 | 7 | 0.9 | 1.8 | 24.2 | 0.524 |
| 3×50+2×25 | 10 | 1.0 | 1.8 | 29.1 | 0.387 |
| 3×70+2×35 | 14 | 1.1 | 2.0 | 33.3 | 0.268 |
| 3×95+2×50 | 19 | 1.1 | 2.1 | 38.2 | 0.193 |
| 3×120+2×70 | 24 | 1.2 | 2.3 | 43.3 | 0.153 |
| 3×150+2×70 | 30 | 1.4 | 2.4 | 46.3 | 0.124 |
| 3×185+2×95 | 37 | 1.6 | 2.5 | 52.0 | 0.0991 |
| 3×240+2×120 | 48 | 1.7 | 2.7 | 58.1 | 0.0754 |
| 3×300+2×150 | 61 | 1.8 | 2.9 | 64.2 | 0.0601 |
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
| ss section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 0.5 | 16/0.19 | 0.6 | 2.1±0.1 | 39.0 |
| 0.75 | 24/0.19 | 0.6 | 2.3±0.1 | 26.0 |
| 1 | 32/0.19 | 0.6 | 2.5±0.1 | 19.5 |
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 |
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
