| Brand Name: | DONGJIAXIN |
| Model Number: | N-YJV |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |

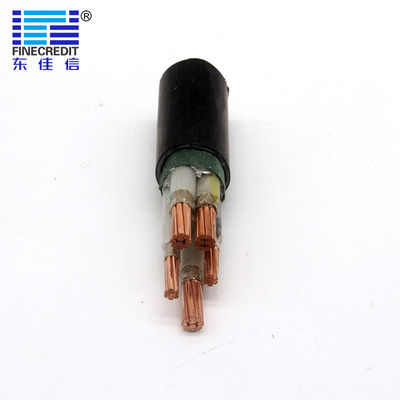

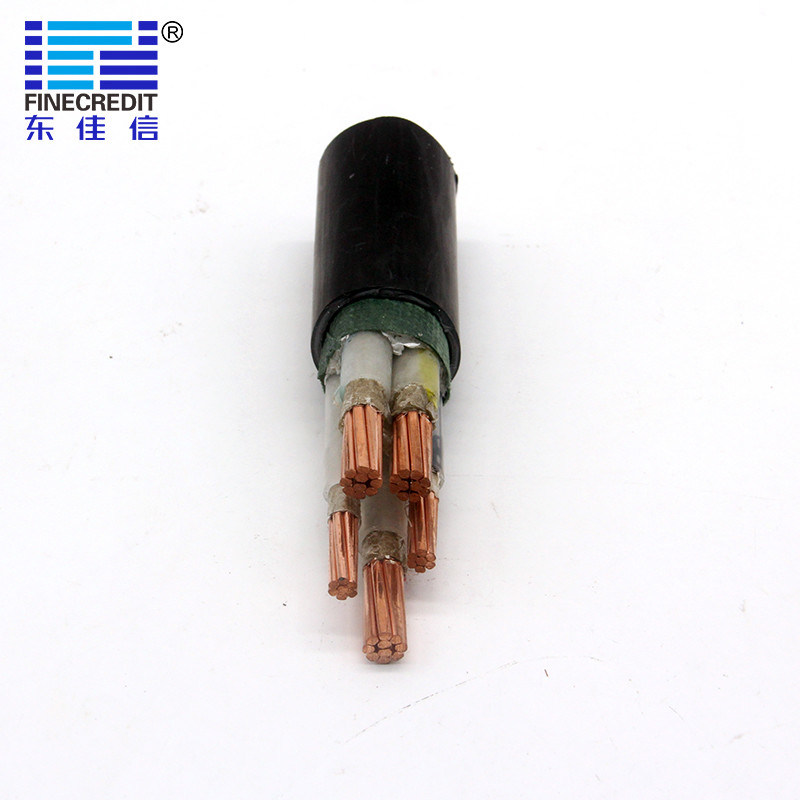

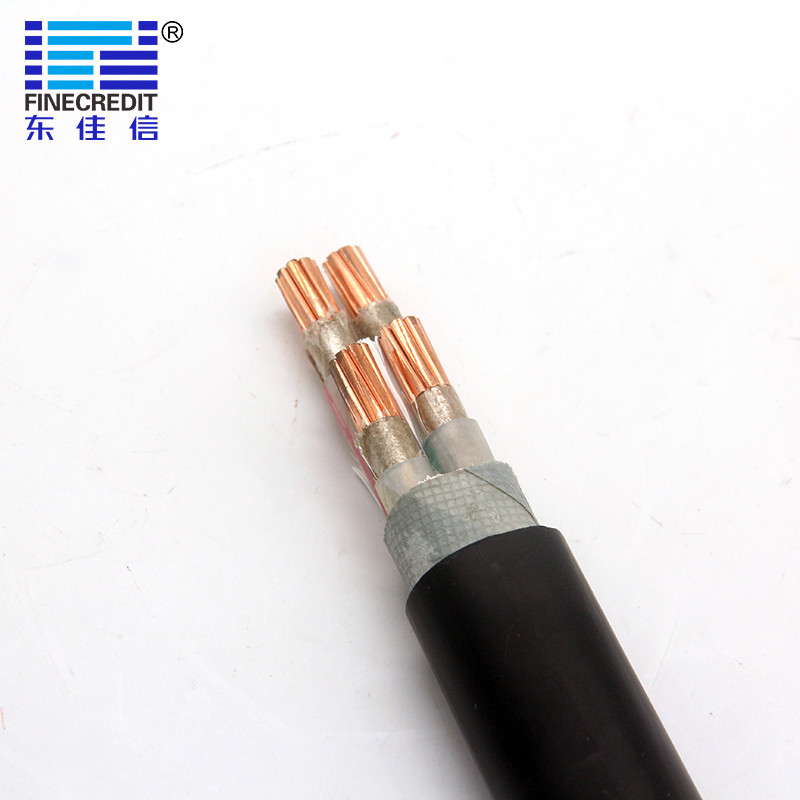

▼Underground Electrical Cable Low Voltage 3x35mm2 Copper Insulation
1. Application
1kV for Fixed installations such as distribution networks or industrial installations.
2. Constraction
| Core Conductor | annealed copper (stranded core) |
| Popular sizes | 2~5 core x1.5~630mm² |
| Insulation | XLPE |
| Jacket | PVC |
| Voltage suitable | 0.6/1kV |
| Standards Certificates | IEC 60502-1 |
3. Advantage
1. Insulation performance:
XLPE maintains the original good insulation properties of PE, and the insulation resistance is further increased. The dielectric loss tangent value is very small, and it is not greatly affected by temperature.
2. Mechanical properties:
Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of XLPE have been improved, thereby making up for the shortcomings of PE being vulnerable to environmental stress and cracking.
4.Technical parameters
2 Core&3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 3×6 | 1 | 0.7 | 1.8 | 14.7 | 3.08 |
| 3×10 | 7 | 0.7 | 1.8 | 16.9 | 1.83 |
| 3×16 | 7 | 0.7 | 1.8 | 19.1 | 1.15 |
| 3×25 | 7 | 0.9 | 1.8 | 22.5 | 0.727 |
| 3×35 | 7 | 0.9 | 1.8 | 24.7 | 0.524 |
| 3×50 | 10 | 1.0 | 1.8 | 27.8 | 0.387 |
| 3×70 | 14 | 1.1 | 1.9 | 31.6 | 0.268 |
| 3×95 | 19 | 1.1 | 2.0 | 38.0 | 0.193 |
| 3×120 | 24 | 1.2 | 2.1 | 42.0 | 0.153 |
| 3×150 | 30 | 1.4 | 2.3 | 45.8 | 0.124 |
| 3×185 | 37 | 1.6 | 2.4 | 50.9 | 0.0991 |
| 3×240 | 48 | 1.7 | 2.6 | 57.7 | 0.0754 |
| 3×300 | 61 | 1.8 | 2.7 | 63.0 | 0.0601 |
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼ Delivery Port :
|
|
|
| Port of Shenzhen | Port of Hongkong |
Port of Guangzhou |
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T, L/C
