| Brand Name: | DONGJIAXIN |
| Model Number: | BBTRZ |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

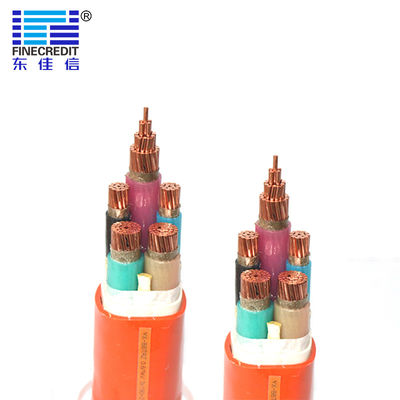

This type of cable is made up of single and multi-cores 600/1000V cables Service Temperature 90°C Emergency Overload Temperature 125°C Short-Circuit Temperature 250°C
The design, construction and testing are compliant with international standard IEC60502 and testing standard BS6387,with standing temperatures of 950~1000 °C for 90 minutes, which means they are capable of remaining in working order despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.
— Flame Retardant
— High Operating Temperatures
— LSOH Halogen-free
— Great Mechanical Strength
— Competitive Installed Cost
— Public Places
|
1.1 GB/T 2951-2008 1.2 GB/T 3048-2007 1.3 BS 6837 |

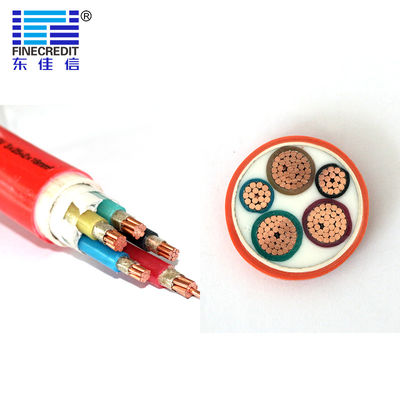

Conductor | Stranded bear copper |
| Insulation (first layer) | mica tape, flame retardant | |
| Insulation (second layer) | Halogen-free cross-linked polyethylene (XLPE) |
|
| Binder tape | glass-fibre tape | |
| Filler | Glass yarns | |
| core wraping | glass-fibre tape as flame-protection | |
| Inner Sheath | oxygen barrier layer | |
| Sheath | Halogen-free thermoplastic polyolefin | |
| Service Temperature | 90°C | |
| Max. conductor temp. in service | 125°C | |
| Short-Circuit Temperature | 250°C |
|
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
