| Brand Name: | DONGJIAXIN |
| Model Number: | WDZ-YJY23 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |

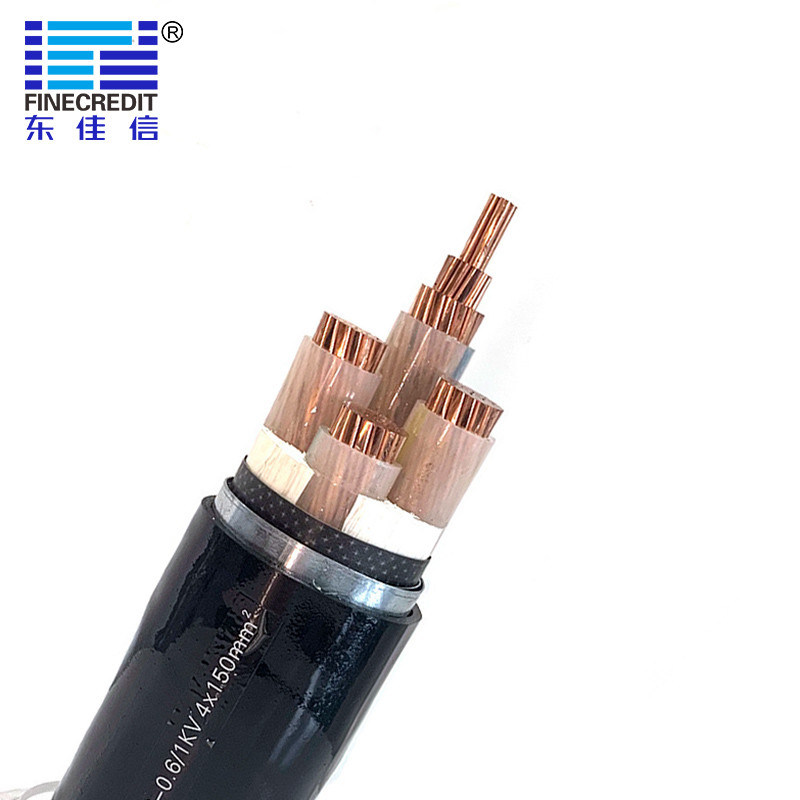

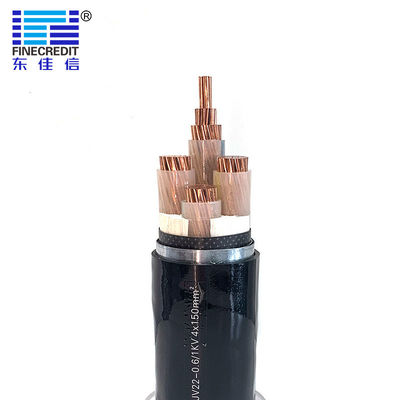

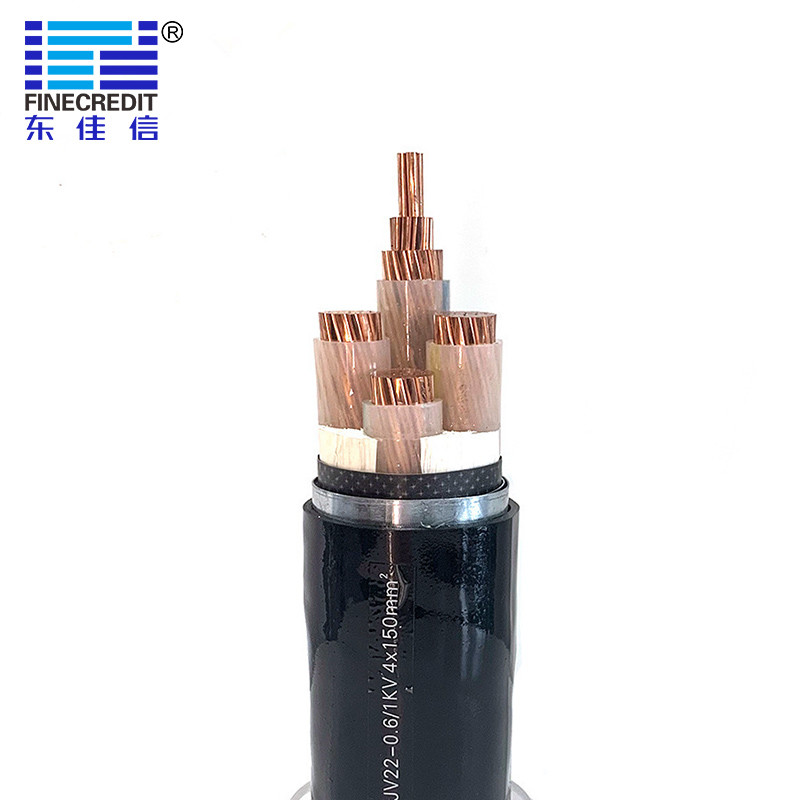

▼Copper Conductor XLPE Insulation Steel Tape Aromred 1KV
Application:
1kV for Fixed installations such as distribution networks or industrial installations.
Constraction:
| Core Conductor | annealed copper (stranded core) |
| Popular sizes | 2~5 core x1.5~630mm² |
| Cable conductor | stranded annealed copper |
| Insulation: | XLPE |
| Jacket: | LSZH |
| Voltage suitable | 0.6/1kV |
| Fire performance | IEC 60332-1 |
| Approval: | QS in China |
Advantage:
Compressed Conductor easy for installation, UV - resistant , Exellent in physical protection,Flame retardant, Low Smoke , halogeen free
Standards Certificates:
IEC 60502-1
Technical parameters:
2 Core&3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×6 | 1 | 0.7 | 1.8 | 14.0 | 3.08 |
| 2×10 | 7 | 0.7 | 1.8 | 16.1 | 1.83 |
| 2×16 | 7 | 0.7 | 1.8 | 18.1 | 1.15 |
| 2×25 | 7 | 0.9 | 1.8 | 21.3 | 0.727 |
| 2×35 | 7 | 0.9 | 1.8 | 23.3 | 0.524 |
| 2×50 | 10 | 1.0 | 1.8 | 26.0 | 0.387 |
| 2×70 | 14 | 1.1 | 1.9 | 29.7 | 0.268 |
| 2×95 | 19 | 1.1 | 2.0 | 33.6 | 0.193 |
| 2×120 | 24 | 1.2 | 2.2 | 39.3 | 0.153 |
| 2×150 | 30 | 1.4 | 2.3 | 42.9 | 0.124 |
| 2×185 | 37 | 1.6 | 2.5 | 47.6 | 0.0991 |
| 2×240 | 48 | 1.7 | 2.6 | 54.0 | 0.0754 |
| 2×300 | 61 | 1.8 | 2.8 | 58.9 | 0.0601 |
| 3×6 | 1 | 0.7 | 1.8 | 14.7 | 3.08 |
| 3×10 | 7 | 0.7 | 1.8 | 16.9 | 1.83 |
| 3×16 | 7 | 0.7 | 1.8 | 19.1 | 1.15 |
| 3×25 | 7 | 0.9 | 1.8 | 22.5 | 0.727 |
| 3×35 | 7 | 0.9 | 1.8 | 24.7 | 0.524 |
| 3×50 | 10 | 1.0 | 1.9 | 27.8 | 0.387 |
| 3×70 | 14 | 1.1 | 2.0 | 31.6 | 0.268 |
| 3×95 | 19 | 1.1 | 2.2 | 38.0 | 0.193 |
| 3×120 | 24 | 1.2 | 2.3 | 42.0 | 0.153 |
| 3×150 | 30 | 1.4 | 2.4 | 45.8 | 0.124 |
| 3×185 | 37 | 1.6 | 2.6 | 50.9 | 0.0991 |
| 3×240 | 48 | 1.7 | 2.8 | 57.7 | 0.0754 |
| 3×300 | 61 | 1.8 | 2.9 | 63.0 | 0.0601 |
4 Core&5 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 4×6 | 1 | 0.7 | 1.8 | 15.7 | 3.08 |
| 4×10 | 7 | 0.7 | 1.8 | 18.3 | 1.83 |
| 4×16 | 7 | 0.7 | 1.8 | 20.7 | 1.15 |
| 4×25 | 7 | 0.9 | 1.8 | 24.6 | 0.727 |
| 4×35 | 7 | 0.9 | 1.8 | 27.0 | 0.524 |
| 4×50 | 10 | 1.0 | 2.0 | 30.4 | 0.387 |
| 4×70 | 14 | 1.1 | 2.1 | 36.7 | 0.268 |
| 4×95 | 19 | 1.1 | 2.3 | 41.8 | 0.193 |
| 4×120 | 24 | 1.2 | 2.4 | 46.2 | 0.153 |
| 4×150 | 30 | 1.4 | 2.6 | 51.9 | 0.124 |
| 4×185 | 37 | 1.6 | 2.7 | 57.1 | 0.0991 |
| 4×240 | 48 | 1.7 | 3.0 | 63.8 | 0.0754 |
| 4×300 | 61 | 1.8 | 3.1 | 69.7 | 0.0601 |
| 5×6 | 1 | 0.7 | 1.8 | 16.9 | 3.08 |
| 5×10 | 7 | 0.7 | 1.8 | 19.7 | 1.83 |
| 5×16 | 7 | 0.7 | 1.8 | 22.4 | 1.15 |
| 5×25 | 7 | 0.9 | 1.8 | 26.7 | 0.727 |
| 5×35 | 7 | 0.9 | 1.9 | 29.6 | 0.524 |
| 5×50 | 10 | 1.0 | 2.1 | 33.5 | 0.387 |
| 5×70 | 14 | 1.1 | 2.2 | 40.2 | 0.268 |
| 5×95 | 19 | 1.1 | 2.4 | 45.9 | 0.193 |
| 5×120 | 24 | 1.2 | 2.6 | 51.0 | 0.153 |
| 5×150 | 30 | 1.4 | 2.7 | 56.7 | 0.124 |
| 5×185 | 37 | 1.6 | 2.9 | 63.0 | 0.0991 |
| 5×240 | 48 | 1.7 | 3.2 | 70.3 | 0.0754 |
| 5×300 | 61 | 1.8 | 3.4 | 76.9 | 0.0601 |
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
