| Brand Name: | DONGJIAXIN |
| Model Number: | RTTZ/RTTYZ |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

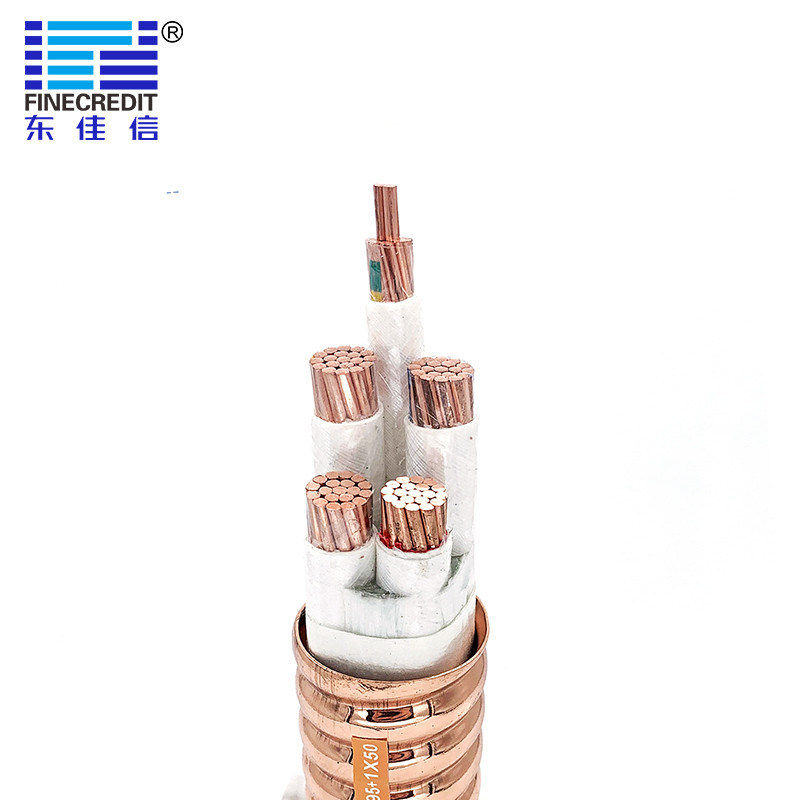

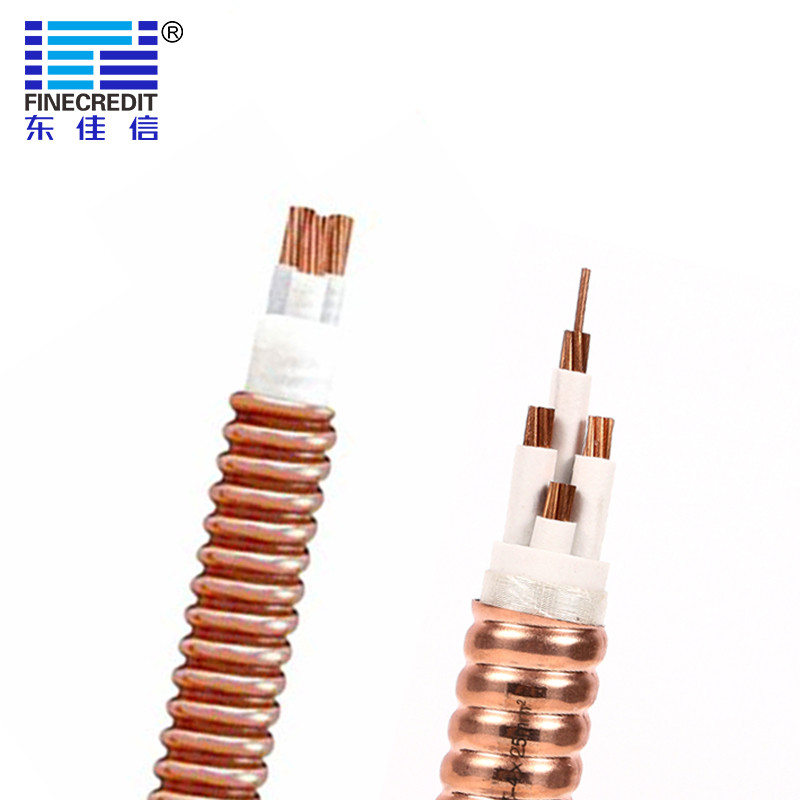

Core Conductor: annealed copper (stranded core)
Insulation: Mica Tape OverLap
Jacket : Wave form copper
Other specs:
a) Temperature rating: -25C up to +90℃
b). Fire performance: IEC 60332-1
c). Voltage suitable: 0.6/1kV
d) . circuit integrity under fire conditions : 950℃,3h
Applications
It is suitable forspecial effect buildings, first-class buildings and super high-rise buildings etc.
Properties and advantages
a) corrosion resistance, good shielding property, the copper sheath good corrosion resistance, in particular or corrosion of the copper environment, should be applied a layer of low smoke zero halogen or plastic external protecting layer on the copper sheath. In the shielded copper sheath, no electromagnetic interference, have not the signal, control cable transmission information interference.
b) good safety, fire cable to normal power supply in the flame (normal power supply 950 degree Celsius for more than 3 hours), starting a fire extinguisher, reducing fire loss. The copper sheath is a good conductor, grounding is best, greatly improve the sensitivity and reliability of grounding protection.
c) long service life, high temperature is not easy to aging, in the normal condition, its service life is more than 100 years.
d) flexible fire-proof cable transportation, installation, assembly is simple, similar to that of an ordinary cable.
e) economical, flexible fire-proof cable because of advanced technology, simple installation, low in the same conditions the comprehensive cost than mineral insulated cable charges.
Special Characteristics:
JG/T 313-2014, BS 6387-2013
▼ Cable Drum Data:
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
|
1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
