| Brand Name: | JIAXIN |
| Model Number: | CAT6 FTP |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
Application
• IEEE 802.3 1000Base-T, 100Base-Tx 10Base-T, PoE+
• ANSI/TIA 854: 1000Base-TX
• CDDI, Token Ring, ATM
• Digital Video
• Broadband and Baseband Analog Video
|
PRODUCT & SPEC.
|

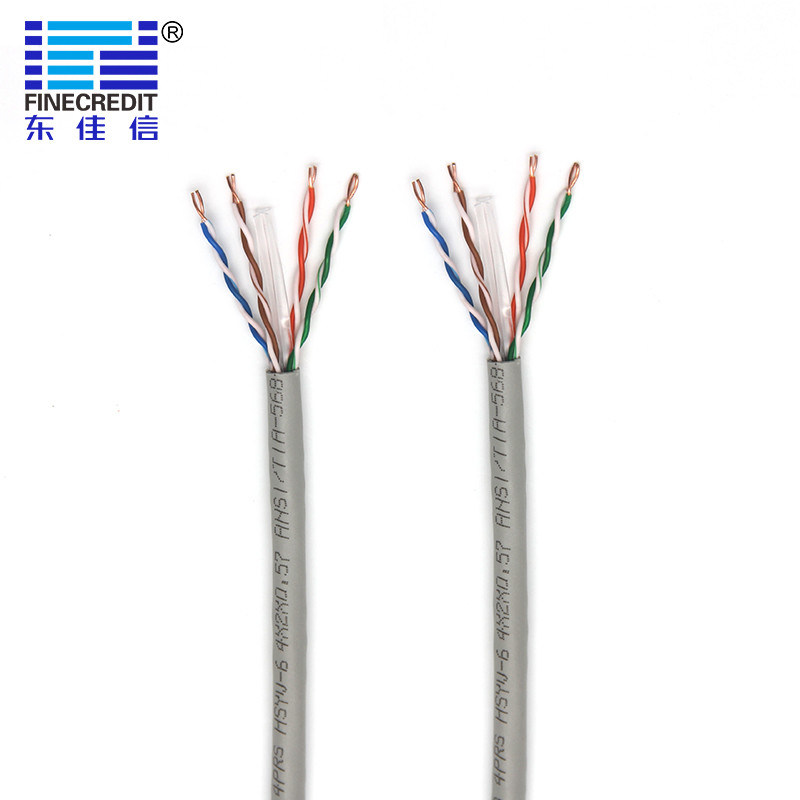

CAT6 UTP/FTP/STP/SFTP
|
|
|
CONDUCTOR
|
Material
|
BC/OFC/CCA/CCU/CCS
|
|
OD
|
4X2X0.57 mm±0.005mm, 23AWG
|
|
|
Number
|
4Pairs
|
|
|
INSULATION
|
Material
|
HDPE
|
|
OD
|
Φ0.91±0.05mm
|
|
|
JACKET
|
Material
|
PVC/LSZH
|
|
Color
|
As client’s request
|
|
|
OD
|
Φ5.1mm±0.1MM
|
|
|
PERFORMANCE
|
DC Resistance(Max.)
|
9.5Ω/100m
|
|
DC Resistance Imbalance
|
0.025
|
|
|
Working Capacitance(Max.)
|
5.4nF/100m
|
|
|
Insulation Resistance
|
10000 MΩ.km
|
|
|
NVP
|
0.69
|
|
|
Operating temperature(℃)
|
-20℃~+70℃
|
|
Advantages
1. The conductor is made of high-quality oxygen-free copper, the insulation is made of imported HDPE, and the wire is environmentally friendly.
2. The product adopts tandem production line, drawing insulation and integral molding, with a concentricity of more than 90%.
3. Reduced attenuation and less crosstalk. The maximum transmission rate is 250Mbps.
4. The transmission performance meets and is better than Category 6 standards, and fully supports Gigabit Ethernet applications.
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T, L/C
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
| Packaging details : | Delivery : | |
|
|
|
| Steel Wooden Drums | Cable Drum In container | shipped in 15 days after payment |
