| Brand Name: | DONGJIAXIN |
| Model Number: | H07RN-F YC YCW, H05RN-F |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T,, Western Union, MoneyGram |
| Supply Ability: | 100KM/Week |

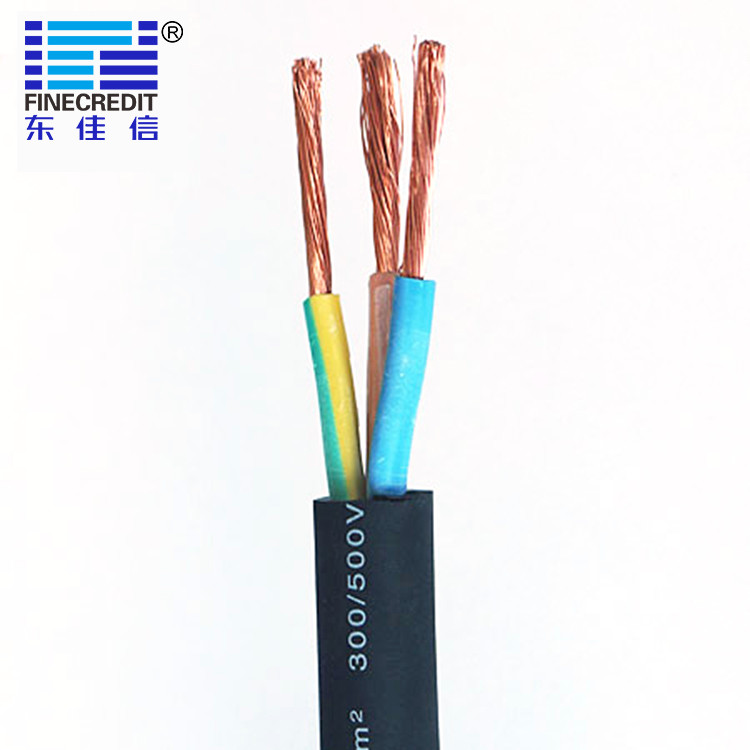

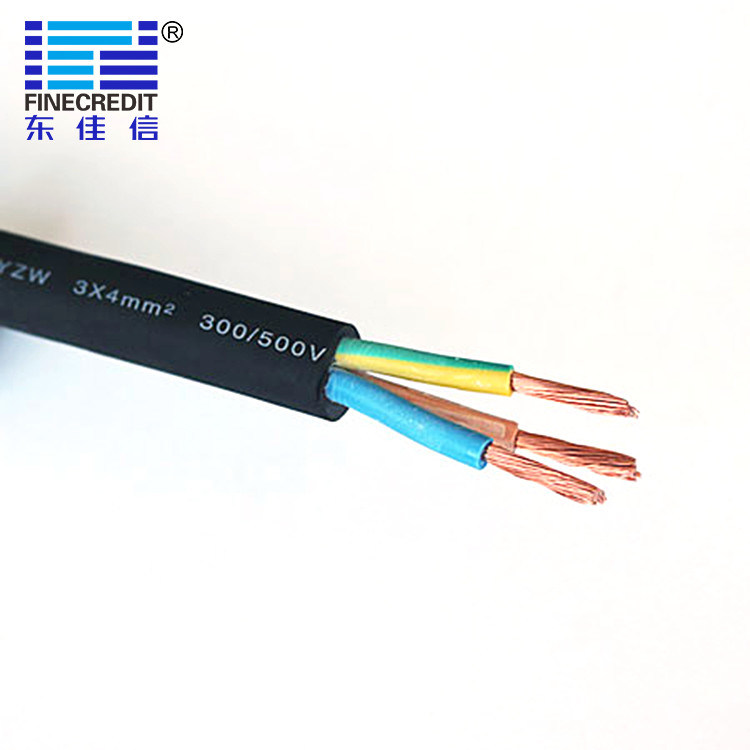

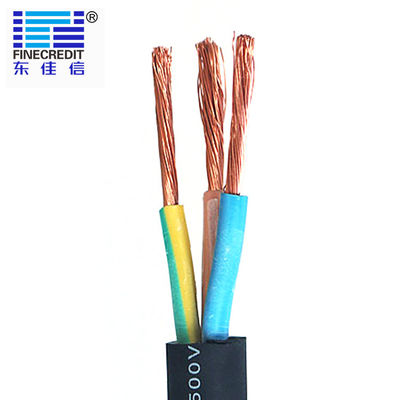

450/750V Copper Conductor Rubber Insulated Rubber Jacket 1~6mm² Ordinary Duty Cable
Working temperature:
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Characteristic:
1. The long-term working temperature of conductor should be no longer than 65°C
2. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
3. ZR type cables have fire-retardant character.
Specification:
H05RN-F:
| NO. | Cross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 1 | 2×0.75 | 24/0.19 | 0.6 | 0.8 | 6.2±0.2 | 26.0 |
| 2 | 2×1 | 32/0.19 | 0.6 | 0.9 | 6.8±0.2 | 19.5 |
| 3 | 3×0.75 | 24/0.19 | 0.6 | 0.9 | 6.8±0.2 | 26.0 |
| 4 | 3×1 | 32/0.19 | 0.6 | 0.9 | 7.2±0.2 | 19.5 |
| 5 | 4×0.75 | 24/0.19 | 0.6 | 0.9 | 7.4±0.2 | 26.0 |
| 6 | 4×1 | 32/0.19 | 0.6 | 0.9 | 7.9±0.2 | 19.5 |
H07RN-F:
| Cross section of conductor(mm²) | Conductor structure | Insulation thickness(mm) | sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×1 | 32/0.19 | 0.8 | 1.3 | 8.4±0.2 | 19.5 |
| 2×1.5 | 30/0.24 | 0.8 | 1.5 | 9.3±0.2 | 13.3 |
| 2×2.5 | 49/0.24 | 0.9 | 1.7 | 11.0±0.2 | 7.98 |
| 2×4 | 56/0.29 | 1.0 | 1.8 | 12.8±0.2 | 4.95 |
| 2×6 | 84/0.29 | 1.0 | 2.0 | 14.4±0.2 | 3.30 |
| 3×1 | 32/0.19 | 0.8 | 1.4 | 9.0±0.2 | 19.5 |
| 3×1.5 | 30/0.24 | 0.8 | 1.6 | 10.0±0.2 | 13.3 |
| 3×2.5 | 49/0.24 | 0.9 | 1.8 | 11.8±0.2 | 7.98 |
| 3×4 | 56/0.29 | 1.0 | 1.9 | 13.7±0.2 | 4.95 |
| 3×6 | 84/0.29 | 1.0 | 2.1 | 15.4±0.2 | 3.30 |
| 4×1 | 32/0.19 | 0.8 | 1.5 | 10.0±0.2 | 19.5 |
| 4×1.5 | 30/0.24 | 0.8 | 1.7 | 11.0±0.2 | 13.3 |
| 4×2.5 | 49/0.24 | 0.9 | 1.9 | 13.0±0.2 | 7.98 |
| 4×4 | 56/0.29 | 1.0 | 2.0 | 15.1±0.2 | 4.95 |
| 4×6 | 84/0.29 | 1.0 | 2.3 | 17.2±0.2 | 3.30 |
| 5×1 | 32/0.19 | 0.8 | 1.6 | 11.0±0.2 | 19.5 |
| 5×1.5 | 30/0.24 | 0.8 | 1.8 | 12.1±0.2 | 13.3 |
| 5×2.5 | 49/0.24 | 0.9 | 2.0 | 14.3±0.2 | 7.98 |
| 5×4 | 56/0.29 | 1.0 | 2.2 | 16.8±0.2 | 4.95 |
| 5×6 | 84/0.29 | 1.0 | 2.5 | 19.0±0.2 | 3.30 |
Testing process
▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
