0.6/1KV Four Core CU/XLPE/PVC 0.6/1kV IEC60502-1 for Underground Application

Products
Description	Aluminum/Copper Conductors(Stranded conductors bunched in the form of of shaped or round), XLPE/PVC insulated, insulated cores laid up, extruded PVC inner sheathed, Overall extruded PVC sheathed. Galvanized mild steel armoring will be provided with wire/strip/tape over inner sheathed in case of armored cables.
Application	These Heavy Duty power cables are suitable for use in generating stations, sub-stations, distribution systems, house service connections, street lighting, industrial installation and operating conditions and tensile stresses when armoured, and can be laid in water or buried direct under the ground, even on steep slopes. They can also be installed indoors, in air or in cable ducts.
Standards	International: IEC 60502, IEC 60228 China: GB/T 12706.1-2008 Other standards such as BS,DIN and ICEA upon request
Construction	1. Core Conductor: annealed copper (stranded core) 2. Popular sizes: 2~5core x1.5~630mm² 3. Cable conductor: stranded annealed copper 4. Insulation: XLPE 5. Jacket:PVC 6. Other specs: a)Temperature rating: -25C up to +90℃ b). Fire performance: IEC 60332-1 c). Approval: QS in China d). Voltage suitable: 0.6/1kV

Technical Specifications:

Cross section of conductor(mm²)	Conductor structure	Insulation Thickness(mm)	Copper sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
3×2.5+1×1.5	1	0.7	1.8	10.8	7.41
3×4+1×2.5	1	0.7	1.8	11.8	4.61
3×6+1×4	1	0.7	1.8	13.0	3.08
3×10+1×6	7	0.7	1.8	15.3	1.83
3×16+1×10	7	0.7	1.8	17.7	1.15
3×25+1×16	7	0.9	1.8	21.2	0.727
3×35+1×16	7	0.9	1.8	23.0	0.524
3×50+1×25	10	1.0	1.8	27.4	0.387
3×70+1×35	14	1.1	1.9	31.5	0.268
3×95+1×50	19	1.1	2.1	36.1	0.193
3×120+1×70	24	1.2	2.2	40.5	0.153
3×150+1×70	30	1.4	2.3	43.8	0.124
3×185+1×95	37	1.6	2.5	49.2	0.0991
3×240+1×120	48	1.7	2.6	55.0	0.0754
3×300+1×150	61	1.8	2.8	60.5	0.0601
3×400+1×185	61	2.0	3.1	68.1	0.0470
3×500+1×240	61	2.2	3.3	76.3	0.0366
3×630+1×300	61	2.4	3.6	90.1	0.0283
3×2.5+2×1.5	1	0.7	1.8	11.5	7.41
3×4+2×2.5	1	0.7	1.8	12.6	4.61
3×6+2×4	1	0.7	1.8	13.9	3.08
3×10+2×6	7	0.7	1.8	16.2	1.83
3×16+2×10	7	0.7	1.8	19.0	1.15
3×25+2×16	7	0.9	1.8	22.6	0.727
3×35+2×16	7	0.9	1.8	24.2	0.524
3×50+2×25	10	1.0	1.8	29.1	0.387
3×70+2×35	14	1.1	2.0	33.3	0.268
3×95+2×50	19	1.1	2.1	38.2	0.193
3×120+2×70	24	1.2	2.3	43.3	0.153
3×150+2×70	30	1.4	2.4	46.3	0.124
3×185+2×95	37	1.6	2.5	52.0	0.0991
3×240+2×120	48	1.7	2.7	58.1	0.0754
3×300+2×150	61	1.8	2.9	64.2	0.0601
3×400+2×185	61	2.0	3.2	72.1	0.0470
3×500+2×240	61	2.2	3.5	80.9	0.0366
3×630+2×300	61	2.4	3.8	94.7	0.0283

Testing process

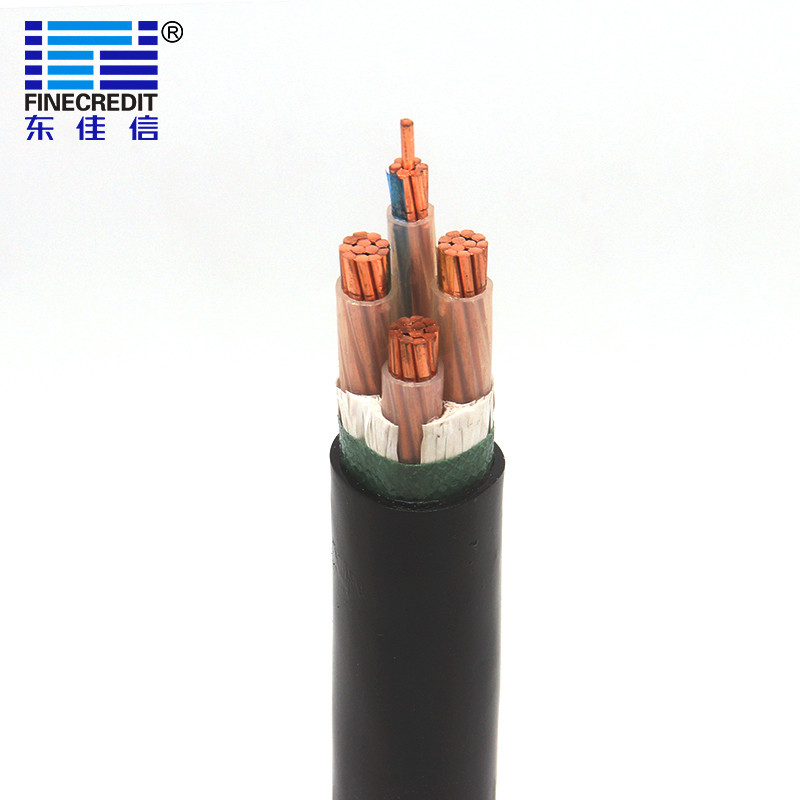

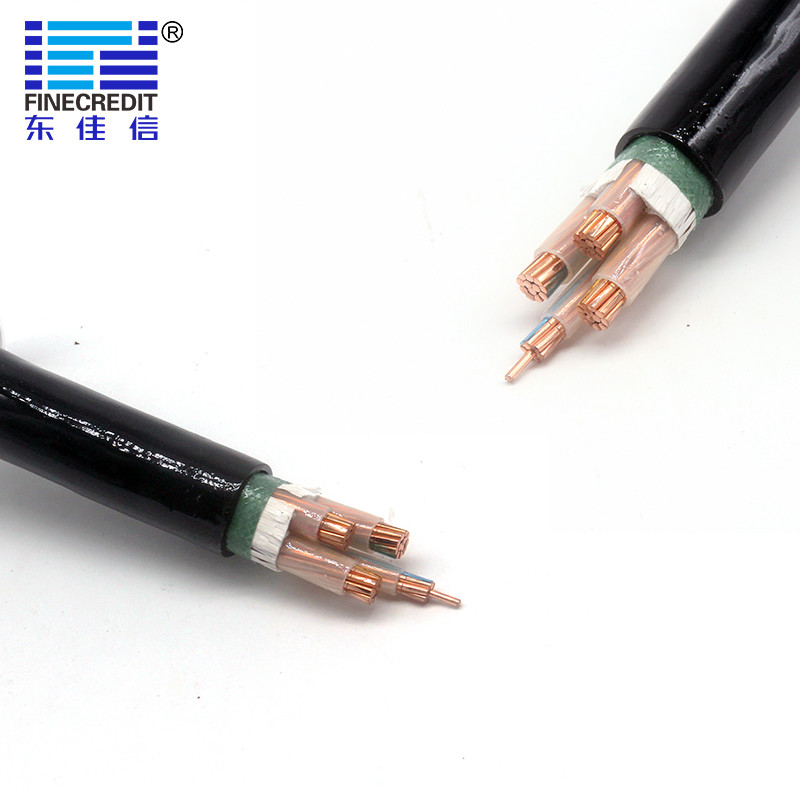

0.6/1kV 4 Core 26 gauge electrical wire , IEC 60502-1 pvc copper cable 1

Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.

FAQ

* How to assure the quality of products?

1. Most of our products have certification.

2. Our Lab staff will test the material and check the process card before production.

3. The O.D tester is testing all the time during production, and the production line is always under control.

4. The product will be tested by Lab staff after production.

* Do you offer free samples or not?

1. If we have inventory about the sample you need and the total amount is not large, it's free.

2. If we don't have inventory, according to our company's rule, sample and freight costs need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.

* When I want customized products, how to do it?

We have professional equipment, technicians & skilled employees, OEM & customized service is welcome. Drawings or samples are required. Of course, the purchased quantity should meet our MOQ.

Tag:

Place of Origin:	CHINA
Brand Name:	DONGJIAXIN
Certification:	ISO,CE,IEC
Model Number:	YJV

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	wooden drums according to quantity and container or required
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union, T/T
Supply Ability:	100KM/Week

Model Name:	YJV	Conductor Type:	Compact Stranded Aluminum Conductor, Cl.2 As Per IEC 60228
Size:	1.5~1000 Sqmm	Test Voltage:	0.6/1KV
Temperature Rating:	-25C Up To +90℃	Application:	Power Transmission And Lighting Systems
Fire Performance:	IEC 60332-1	Insulation:	XLPE
Highlight:	4Core 26 gauge electrical wire , 26 Gauge pvc copper cable
