| Brand Name: | JIAXIN |
| Model Number: | UTP CAT 6 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
Standards
International:
ANSI/TIA 568-C.2; UL 1666; RoHS Compliant Directive 2011/65/EU; UL 444; ISO/IEC 11801 Ed. 2.0 (Class D)
National: YD/T1019-2001

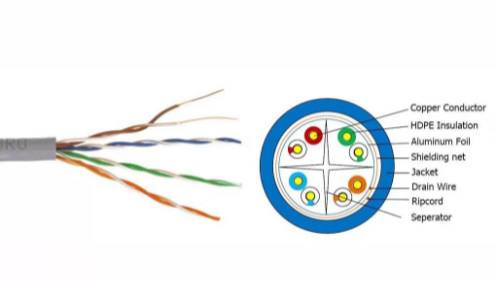

Construction
– Conductor: Solid bare copper
– Insulation: Polyethylen - Two insulated conductors twisted to a pair
– Cross filler - 4/2 laid up together
– Screen: Al / PET foil
– Tinned copper braid
– Outer sheath: LSZH
Physical characteristics
| Conductor diameter | Ø 0.575 mm(23 AWG) |
| Insulation diameter | 1.1 mm |
| sheath thikness | 0.55 mm |
| Drain Wire diameter | 0.4mm |
| cable diameter | 8.2 mm |
| Twisted pitch(mm) | ≤20 |
| Cable pitch (mm) | ≤100 |

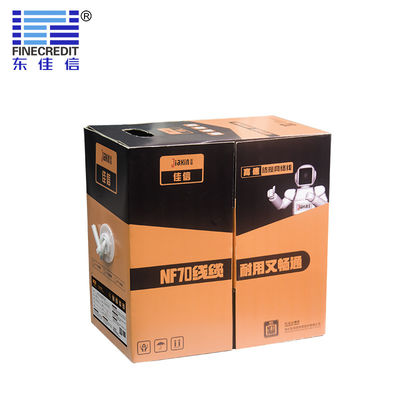

Packaging
| Approx.Weight | Package |
| 20 - 25 kg | 305 m/ roll pull box |
▼Ordering Options:
For prompt quotation/supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material: PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a little too technical for you, then why not get in touch with us. We look forward to assisting you in identifying the best products for your specific application and answering any questions you might have.
Laboratory:
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
