XLPE Insulation Industrial Electrical Cable , Steal Tape Aromred 10 Gauge Electrical Cable

Name: XLPE Insulation Industrial Electrical Cable , Steal Tape Aromred 10 Gauge Electrical Cable
Brand: SHENZHEN DONGJIAXIN WIRE&CABLE CO.,LTD
SKU: ZC-YJV22
Availability: InStock

Brand Name:	DONGJIAXIN
Model Number:	ZC-YJV22
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	100KM/Week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Model Name:

ZC-YJV22

Rated Voltage:

0.6/1KV

Size:

1.5~630mm²

Nos.of Core:

2~5

Conductor Type:

Class 2

Sheath:

Steal Tape Aromred And PVC Jacket Flame Retardant

Packaging Details:

Steel wooden drum

Highlight:

XLPE 10 gauge electrical cable

Product Description

Copper Conductor XLPE Insulation Steel Tape Aromred and Pvc Jacket Flame Retardant Power Cable

▼ Application:

1kV for Fixed installations such as distribution networks or industrial installations.

▼ Constraction:

Core Conductor	annealed copper (stranded core)
Popular sizes	2~5 core x1.5~630mm²
Cable conductor	stranded annealed copper
Insulation	XLPE
Jacket	pvc with steel tape aromred
Temperature rating	-25C up to +90℃
Voltage suitable	0.6/1kV
Fire performance	IEC 60332-1
Approval	QS in China

▼ Advantage:

Compressed Conductor easy for installation, UV - resistant , Exellent in physical protection

▼ Standards&Certificates:

IEC 60502-1

▼ Technical parameters:

1. Single Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
1×1.5	1	2×0.14	0.7	1.4	6.0	12.1
1×2.5	1	2×0.14	0.7	1.4	6.4	7.41
1×4	1	2×0.14	0.7	1.4	6.9	4.61
1×6	1	2×0.14	0.7	1.4	7.3	3.08
1×10	7	2×0.14	0.7	1.4	8.4	1.83
1×16	7	2×0.14	0.7	1.4	9.4	1.15
1×25	7	2×0.14	0.9	1.4	11.0	0.727
1×35	7	2×0.14	0.9	1.4	12.0	0.524
1×50	10	2×0.14	1.0	1.4	13.3	0.387
1×70	14	2×0.14	1.1	1.4	15.1	0.268
1×95	19	2×0.14	1.1	1.5	17.3	0.193
1×120	24	2×0.14	1.2	1.5	19.0	0.153
1×150	30	2×0.14	1.4	1.6	20.9	0.124
1×185	37	2×0.14	1.6	1.6	23.0	0.0991
1×240	48	2×0.14	1.7	1.7	25.7	0.0754
1×300	61	2×0.14	1.8	1.8	28.3	0.0601
1×400	61	2×0.14	2.0	1.9	31.6	0.0470
1×500	61	2×0.14	2.2	2.0	35.1	0.0366
1×630	61	2×0.14	2.4	2.2	42.1	0.0283

2. 2 Core&3 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
2×1.5	1	2×0.14	0.7	1.8	10.6	12.1
2×2.5	1	2×0.14	0.7	1.8	11.4	7.41
2×4	1	2×0.14	0.7	1.8	12.4	4.61
2×6	1	2×0.14	0.7	1.8	13.2	3.08
2×10	7	2×0.14	0.7	1.8	15.4	1.83
2×16	7	2×0.14	0.7	1.8	17.4	1.15
2×25	7	2×0.14	0.9	1.8	20.6	0.727
2×35	7	2×0.14	0.9	1.8	22.6	0.524
2×50	10	2×0.14	1.0	1.8	26.2	0.387
2×70	14	2×0.14	1.1	1.8	29.8	0.268
2×95	19	2×0.14	1.1	1.9	34.0	0.193
2×120	24	2×0.14	1.2	2.0	37.4	0.153
2×150	30	2×0.14	1.4	2.2	41.2	0.124
2×185	37	2×0.14	1.6	2.3	45.6	0.0991
2×240	48	2×0.14	1.7	2.5	51.0	0.0754
2×300	61	2×0.14	1.8	2.6	56.0	0.0601
2×400	61	2×0.14	2.0	2.9	62.6	0.0470
2×500	61	2×0.14	2.2	3.1	70.0	0.0366
2×630	61	2×0.14	2.4	3.3	83.6	0.0283
3×1.5	1	2×0.14	0.7	1.8	11.2	12.1
3×2.5	1	2×0.14	0.7	1.8	12.1	7.41
3×4	1	2×0.14	0.7	1.8	13.2	4.61
3×6	1	2×0.14	0.7	1.8	14.0	3.08
3×10	7	2×0.14	0.7	1.8	16.4	1.83
3×16	7	2×0.14	0.7	1.8	18.6	1.15
3×25	7	2×0.14	0.9	1.8	22.0	0.727
3×35	7	2×0.14	0.9	1.8	24.2	0.524
3×50	10	2×0.14	1.0	1.8	28.0	0.387
3×70	14	2×0.14	1.1	1.9	32.1	0.268
3×95	19	2×0.14	1.1	2.0	36.4	0.193
3×120	24	2×0.14	1.2	2.1	40.3	0.153
3×150	30	2×0.14	1.4	2.3	44.3	0.124
3×185	37	2×0.14	1.6	2.4	49.1	0.0991
3×240	48	2×0.14	1.7	2.6	54.9	0.0754
3×300	61	2×0.14	1.8	2.7	60.1	0.0601
3×400	61	2×0.14	2.0	3.0	67.4	0.0470
3×500	61	2×0.14	2.2	3.2	75.3	0.0366
3×630	61	2×0.14	2.4	3.5	90.0	0.0283

3. 4 Core&5 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
4×1.5	1	2×0.14	0.7	1.8	12.2	12.1
4×2.5	1	2×0.14	0.7	1.8	13.1	7.41
4×4	1	2×0.14	0.7	1.8	14.3	4.61
4×6	1	2×0.14	0.7	1.8	15.3	3.08
4×10	7	2×0.14	0.7	1.8	18.0	1.83
4×16	7	2×0.14	0.7	1.8	20.4	1.15
4×25	7	2×0.14	0.9	1.8	24.3	0.727
4×35	7	2×0.14	0.9	1.8	26.7	0.524
4×50	10	2×0.14	1.0	1.8	30.8	0.387
4×70	14	2×0.14	1.1	2.0	35.4	0.268
4×95	19	2×0.14	1.1	2.1	40.4	0.193
4×120	24	2×0.14	1.2	2.3	44.9	0.153
4×150	30	2×0.14	1.4	2.4	49.3	0.124
4×185	37	2×0.14	1.6	2.6	54.7	0.0991
4×240	48	2×0.14	1.7	2.8	61.0	0.0754
4×300	61	2×0.14	1.8	3.0	67.2	0.0601
4×400	61	2×0.14	2.0	3.3	75.3	0.0470
4×500	61	2×0.14	2.2	3.5	84.0	0.0366
4×630	61	2×0.14	2.4	3.8	100.5	0.0283
5×1.5	1	2×0.14	0.7	1.8	13.2	12.1
5×2.5	1	2×0.14	0.7	1.8	14.2	7.41
5×4	1	2×0.14	0.7	1.8	15.6	4.61
5×6	1	2×0.14	0.7	1.8	16.7	3.08
5×10	7	2×0.14	0.7	1.8	19.6	1.83
5×16	7	2×0.14	0.7	1.8	22.3	1.15
5×25	7	2×0.14	0.9	1.8	26.7	0.727
5×35	7	2×0.14	0.9	1.8	29.4	0.524
5×50	10	2×0.14	1.0	1.9	34.1	0.387
5×70	14	2×0.14	1.1	2.1	39.1	0.268
5×95	19	2×0.14	1.1	2.2	44.7	0.193
5×120	24	2×0.14	1.2	2.4	49.7	0.153
5×150	30	2×0.14	1.4	2.6	54.7	0.124
5×185	37	2×0.14	1.6	2.8	60.6	0.0991
5×240	48	2×0.14	1.7	3.0	67.7	0.0754
5×300	61	2×0.14	1.8	3.2	74.6	0.0601
5×400	61	2×0.14	2.0	3.5	83.4	0.0470
5×500	61	2×0.14	2.2	3.8	93.4	0.0366

4. 3+1 Core & 3+2 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
3×2.5+1×1.5	1	2×0.14	0.7	1.8	12.9	7.41
3×4+1×2.5	1	2×0.14	0.7	1.8	14.0	4.61
3×6+1×4	1	2×0.14	0.7	1.8	15.1	3.08
3×10+1×6	7	2×0.14	0.7	1.8	17.3	1.83
3×16+1×10	7	2×0.14	0.7	1.8	19.8	1.15
3×25+1×16	7	2×0.14	0.9	1.8	23.3	0.727
3×35+1×16	7	2×0.14	0.9	1.8	25.1	0.524
3×50+1×25	10	2×0.14	1.0	1.8	29.4	0.387
3×70+1×35	14	2×0.14	1.1	1.9	33.5	0.268
3×95+1×50	19	2×0.14	1.1	2.1	38.1	0.193
3×120+1×70	24	2×0.14	1.2	2.2	42.5	0.153
3×150+1×70	30	2×0.14	1.4	2.3	45.8	0.124
3×185+1×95	37	2×0.14	1.6	2.5	51.2	0.0991
3×240+1×120	48	2×0.14	1.7	2.6	57.0	0.0754
3×300+1×150	61	2×0.14	1.8	2.8	62.6	0.0601
3×400+1×185	61	2×0.14	2.0	3.1	70.1	0.0470
3×500+1×240	61	2×0.14	2.2	3.3	78.3	0.0366
3×630+1×300	61	2×0.14	2.4	3.6	92.1	0.0283
3×2.5+2×1.5	1	2×0.14	0.7	1.8	13.8	7.41
3×4+2×2.5	1	2×0.14	0.7	1.8	15.1	4.61
3×6+2×4	1	2×0.14	0.7	1.8	16.2	3.08
3×10+2×6	7	2×0.14	0.7	1.8	18.5	1.83
3×16+2×10	7	2×0.14	0.7	1.8	21.3	1.15
3×25+2×16	7	2×0.14	0.9	1.8	24.9	0.727
3×35+2×16	7	2×0.14	0.9	1.8	26.6	0.524
3×50+2×25	10	2×0.14	1.0	1.8	31.4	0.387
3×70+2×35	14	2×0.14	1.1	2.0	35.6	0.268
3×95+2×50	19	2×0.14	1.1	2.1	40.4	0.193
3×120+2×70	24	2×0.14	1.2	2.3	45.5	0.153
3×150+2×70	30	2×0.14	1.4	2.4	48.5	0.124
3×185+2×95	37	2×0.14	1.6	2.5	54.2	0.0991
3×240+2×120	48	2×0.14	1.7	2.7	60.3	0.0754
3×300+2×150	61	2×0.14	1.8	2.9	66.5	0.0601
3×400+2×185	61	2×0.14	2.0	3.2	74.3	0.0470
3×500+2×240	61	2×0.14	2.2	3.5	83.1	0.0366
3×630+2×300	61	2×0.14	2.4	3.8	97.0	0.0283

5. 4+1 Core

Cross section of conductor(mm²)	Conductor structure	Insulation thickness(mm)	sheath thickness(mm)	Approx.cable diameter(mm)	Max resistance of conductor at 20℃ (Ω/km)
4×2.5+1×1.5	1	2×0.14	0.7	1.8	14.0	7.41
4×4+1×2.5	1	2×0.14	0.7	1.8	15.3	4.61
4×6+1×4	1	2×0.14	0.7	1.8	16.5	3.08
4×10+1×6	7	2×0.14	0.7	1.8	19.1	1.83
4×16+1×10	7	2×0.14	0.7	1.8	21.8	1.15
4×25+1×16	7	2×0.14	0.9	1.8	25.8	0.727
4×35+1×16	7	2×0.14	0.9	1.8	28.0	0.524
4×50+1×25	10	2×0.14	1.0	1.9	32.8	0.387
4×70+1×35	14	2×0.14	1.1	2.0	37.3	0.268
4×95+1×50	19	2×0.14	1.1	2.2	42.7	0.193
4×120+1×70	24	2×0.14	1.2	2.3	47.5	0.153
4×150+1×70	30	2×0.14	1.4	2.5	51.6	0.124
4×185+1×95	37	2×0.14	1.6	2.6	57.4	0.0991
4×240+1×120	48	2×0.14	1.7	2.9	64.1	0.0754
4×300+1×150	61	2×0.14	1.8	3.1	70.6	0.0601
4×400+1×185	61	2×0.14	2.0	3.4	78.9	0.0470
4×500+1×240	61	2×0.14	2.2	3.6	88.2	0.0366
4×630+1×300	61	2×0.14	2.4	3.9	104.3	0.0283

▼ Company information:

30 years of experience in R & D, production and sales of wire and cable.

Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.

Annual revenue is about 500 million US dollars.

CNAS laboratory, more than 100 testing reports.

Products are widely used in real estate, municipal, industrial support, mobile communications etc

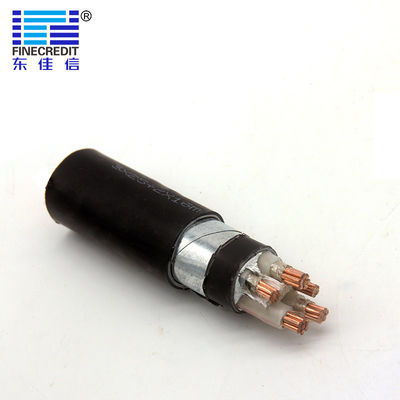

XLPE Insulation Industrial Electrical Cable , Steal Tape Aromred 10 Gauge Electrical Cable 0

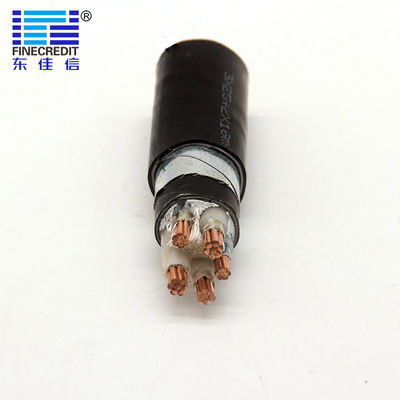

XLPE Insulation Industrial Electrical Cable , Steal Tape Aromred 10 Gauge Electrical Cable 1
