| Brand Name: | DONGJIAXIN |
| Model Number: | H05VV-F |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 100KM/WEEK |

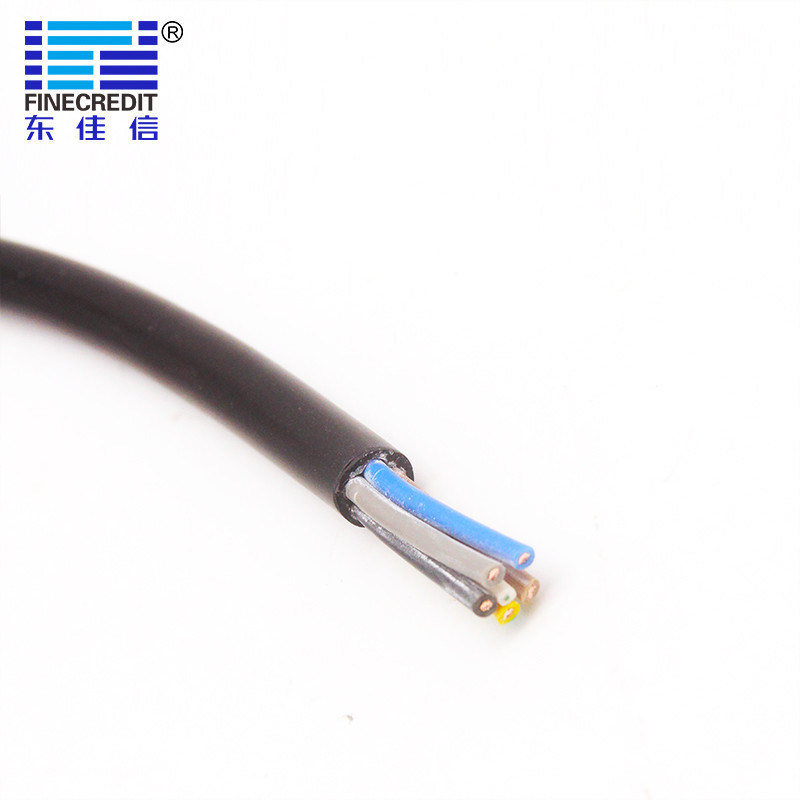

PVC Compound H05VVF Industrial Flexible Cable Muti Core Copper Conductor
H05VV-F H05VVF 0.5-6mm2 Industrial Flexible Cable Muti Core Copper Conductor
▼ Application:
The cables are intended for the connection of domestic appliances to the fixed supply.
▼ Construction:
| Core Conductor | Stranded bare copper |
| Popular sizes | 2~5 core × 0.75~2.5mm² |
| Cable conductor | stranded annealed copper |
| Insulation | PVC |
| Jacket | PVC |
| Temperature rating | -25C up to +70℃ |
| Voltage suitable | 300/500V |
| Fire performance | IEC 60332-1 |
| Approval | VDE CE CB CCC |
▼ Advantage:
UV resistant , Flexible to power supply.
▼ Standards&Certificates:
EN 50525-2-11:2011 & IEC 60227-5 GB/T 5023.5-2008
▼ Technical parameters:
2 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×0.75 | 24 | 0.6 | 0.8 | 6.3 | 26.0 |
| 2×0.75 | 24 | 0.6 | 0.8 | 4.0×6.4 | 26.0 |
| 2×1 | 32 | 0.6 | 0.8 | 6.7 | 19.5 |
| 2×1 | 32 | 0.6 | 0.8 | 4.2×6.8 | 19.5 |
| 2×1.5 | 30 | 0.7 | 0.8 | 7.7 | 13.3 |
| 2×2.5 | 49 | 0.8 | 1.0 | 9.3 | 7.98 |
3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 3×0.75 | 24 | 0.6 | 0.8 | 6.7 | 26.0 |
| 3×1 | 32 | 0.6 | 0.8 | 7.1 | 19.5 |
| 3×1.5 | 30 | 0.7 | 0.9 | 8.4 | 13.3 |
| 3×2.5 | 49 | 0.8 | 1.1 | 10.1 | 7.98 |
3. 4 Core&5 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 4×0.75 | 24 | 0.6 | 0.8 | 7.3 | 26.0 |
| 4×1 | 32 | 0.6 | 0.9 | 8.0 | 19.5 |
| 4×1.5 | 30 | 0.7 | 1.0 | 9.4 | 13.3 |
| 4×2.5 | 49 | 0.8 | 1.1 | 11.0 | 7.98 |
| 5×0.75 | 24 | 0.6 | 0.9 | 8.2 | 26.0 |
| 5×1 | 32 | 0.6 | 0.9 | 8.7 | 19.5 |
| 5×1.5 | 30 | 0.7 | 1.1 | 10.4 | 13.3 |
| 5×2.5 | 49 | 0.8 | 1.2 | 12.3 | 7.98 |
▼ CNAS Labortory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
