| Brand Name: | DONGJIAXIN |
| Model Number: | H05VV-F |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 100KM/WEEK |

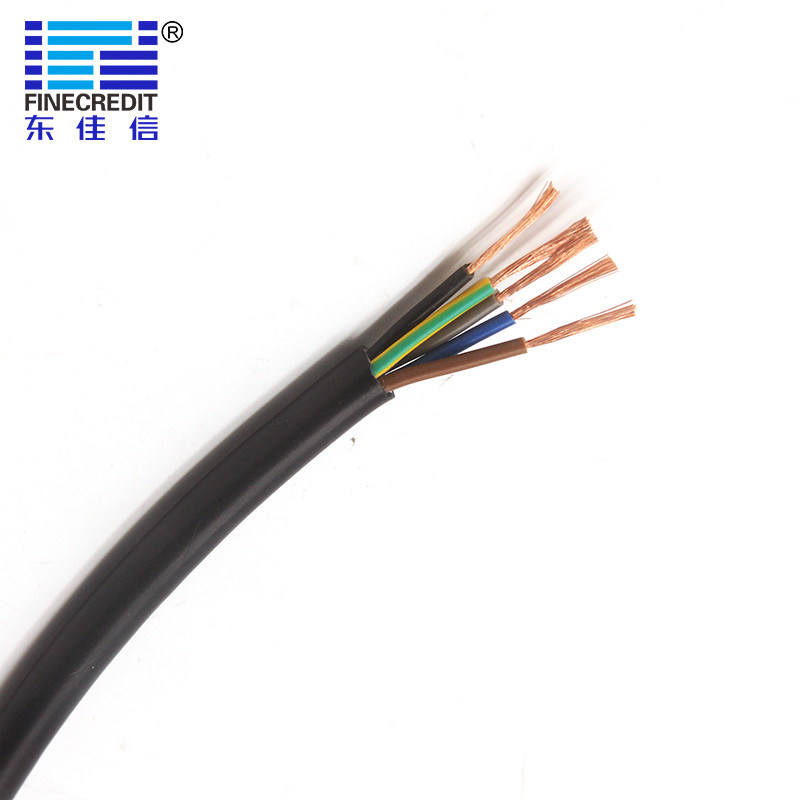

H05VV-F H05VVF 0.5-6mm2 Industrial Flexible Cable Muti Core Copper Conductor
▼ Application:
The cables are intended for the connection of domestic appliances to the fixed supply.
▼ Construction:
| Core Conductor | Stranded bare copper |
| Popular sizes | 2~5 core × 0.75~2.5mm² |
| Cable conductor | stranded annealed copper |
| Insulation | PVC |
| Jacket | PVC |
| Temperature rating | -25C up to +70℃ |
| Voltage suitable | 300/500V |
| Fire performance | IEC 60332-1 |
| Approval | VDE CE CB CCC |
▼ Advantage:
UV resistant , Flexible to power supply.
▼ Standards&Certificates:
EN 50525-2-11:2011 & IEC 60227-5 GB/T 5023.5-2008
▼ Technical parameters:
2 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×0.75 | 24 | 0.6 | 0.8 | 6.3 | 26.0 |
| 2×0.75 | 24 | 0.6 | 0.8 | 4.0×6.4 | 26.0 |
| 2×1 | 32 | 0.6 | 0.8 | 6.7 | 19.5 |
| 2×1 | 32 | 0.6 | 0.8 | 4.2×6.8 | 19.5 |
| 2×1.5 | 30 | 0.7 | 0.8 | 7.7 | 13.3 |
| 2×2.5 | 49 | 0.8 | 1.0 | 9.3 | 7.98 |
3 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 3×0.75 | 24 | 0.6 | 0.8 | 6.7 | 26.0 |
| 3×1 | 32 | 0.6 | 0.8 | 7.1 | 19.5 |
| 3×1.5 | 30 | 0.7 | 0.9 | 8.4 | 13.3 |
| 3×2.5 | 49 | 0.8 | 1.1 | 10.1 | 7.98 |
3. 4 Core&5 Core
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 4×0.75 | 24 | 0.6 | 0.8 | 7.3 | 26.0 |
| 4×1 | 32 | 0.6 | 0.9 | 8.0 | 19.5 |
| 4×1.5 | 30 | 0.7 | 1.0 | 9.4 | 13.3 |
| 4×2.5 | 49 | 0.8 | 1.1 | 11.0 | 7.98 |
| 5×0.75 | 24 | 0.6 | 0.9 | 8.2 | 26.0 |
| 5×1 | 32 | 0.6 | 0.9 | 8.7 | 19.5 |
| 5×1.5 | 30 | 0.7 | 1.1 | 10.4 | 13.3 |
| 5×2.5 | 49 | 0.8 | 1.2 | 12.3 | 7.98 |
▼ CNAS Labortory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
