| Brand Name: | JIAXIN |
| Model Number: | H05VV-F |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 100KM/WEEK |

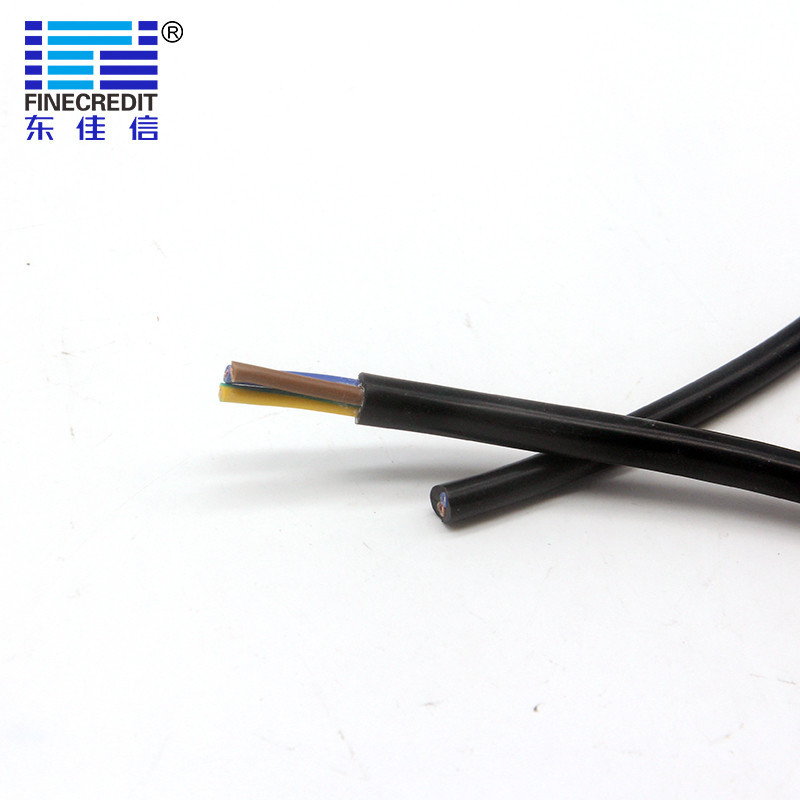

IEC 60227 3 Core Industrial Flexible Cable PVC Insulated For Household
Quick details
|
Product category: |
H05VV-F |
|
Austrian type: |
YMM |
|
Number of cores: |
3 |
|
Nominal cross section: |
3 x 1.0 mm² |
|
Overall diameter approx: |
7.0 - 7.2 mm |
|
Net weight approx: |
73kg / km |
|
Standard delivery length: |
100 m |
|
Current carrying capacity: |
19.5 Ohms / km |
Description
|
Applications: For household appliances working under humid and medium mechanical stress. Suitable for installation in electrical installation pipes or similar closed systems - surface or flush mount Standards/references:
Color options: red, yellow, blue, black, green, green/yellow (other colors can be supplied on request) |
Characteristics
|
Construction characteristics |
|
|
Conductor material |
Fine wire according to IEC 60228 class 5 |
|
Insulation |
polyvinyl chloride (PVC) |
|
Outer Sheath |
polyvinyl chloride (PVC) |
|
|
|
|
Usage characteristics |
|
|
Maximum operating temperature |
70 °C |
|
Short-circuit max conductor temperature(duration up to 5 S) |
160 °C |
|
Temperature range |
- 25 to + 70 °C |
|
|
|
|
|
|
▼ Delivery Port :
|
|
|
|
|
Port of Shenzhen |
Port of Hongkong |
Port of Guangzhou |
▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
