| Brand Name: | JIAXIN |
| Model Number: | UL 1015 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

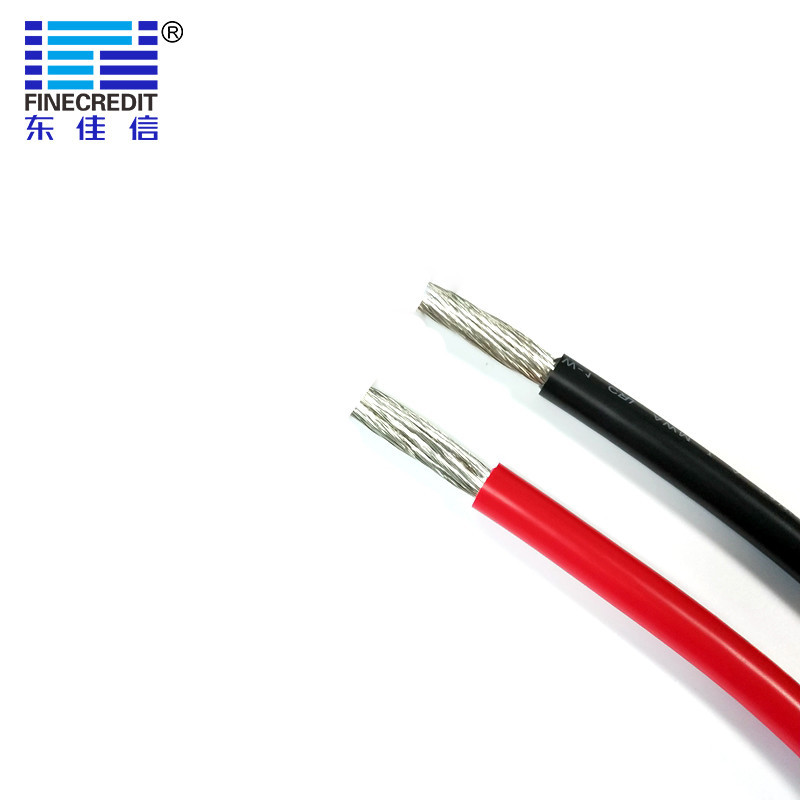

600V UL1015 Industrial Flexible Cable Tinned Copper Wire Cables Roll
▼ Professional factory tinned copper UL1015 electric wires cables
Certifications:
|
A. Environmental testing pass RoHS |
|
B.UL/CUL |
|
C.Fire performance: VW-1 / FT1 |
Applications:
Household appliance, Illumination & Lighting & Headlamp, electric machines, temperature sensor, Military Serie
Characteristic:
1. Rated temperature: 105 °C
2. Rated voltage: 600V
3. Solid or stranded, tinned or bare copper conductor 30AWG-2000 kcmil
4. PVC insulation
5. Passes VW-1 & FT1 Vertical flame test
Photos:
Detail Datas:
|
Designation |
AWG |
No./Wire |
Conductor Diameter |
DCR @ 20℃ |
Insulated Thickness |
Minimum insulation thickness |
Insulation Diameter |
Capacity in air @ 25℃ |
|
AWM 1015 |
24 |
11/0.16 |
0.61 |
94.2 |
0.76 |
0.69 |
2.20±0.10 |
7 |
|
AWM 1015 |
22 |
17/0.16 |
0.76 |
55.4 |
0.76 |
0.69 |
2.35±0.15 |
9 |
|
AWM 1015 |
20 |
26/0.16 |
0.93 |
34.6 |
0.76 |
0.69 |
2.60±0.15 |
12 |
|
AWM 1015 |
18 |
41/0.16 |
1.18 |
21.8 |
0.76 |
0.69 |
2.80±0.15 |
15 |
|
AWM 1015 |
16 |
26/0.254 |
1.49 |
13.7 |
0.76 |
0.69 |
3.10±0.15 |
21 |
|
AWM 1015 |
14 |
41/0.254 |
1.86 |
8.62 |
0.76 |
0.70 |
3.50±0.15 |
27 |
|
AWM 1015 |
12 |
65/0.254 |
2.34 |
5.43 |
0.76 |
0.71 |
4.00±0.15 |
37 |
|
AWM 1015 |
11 |
83/0.254 |
2.67 |
4.3 |
0.76 |
0.69 |
4.30±0.15 |
43 |
|
AWM 1015 |
10 |
105/0.254 |
3.1 |
3.41 |
0.76 |
0.69 |
4.60±0.20 |
50 |
|
AWM 1015 |
9 |
133/0.254 |
3.81 |
2.71 |
0.76 |
0.69 |
5.35±0.20 |
63.0 |
|
AWM 1015 |
8 |
168/0.254 |
4.00 |
2.14 |
1.14 |
1.04 |
6.60±0.25 |
74.7 |
|
AWM 1015 |
7 |
133/0.321 |
4.83 |
1.7 |
1.14 |
1.04 |
7.20±0.25 |
85.5 |
|
AWM 1015 |
6 |
266/0.254 |
5.43 |
1.35 |
1.53 |
1.37 |
8.50±0.25 |
99.0 |
|
AWM 1015 |
5 |
336/0.254 |
6.09 |
1.07 |
1.53 |
1.37 |
9.20±0.25 |
117.0 |
|
AWM 1015 |
4 |
420/0.254 |
6.80 |
0.85 |
1.53 |
1.37 |
10.00±0.30 |
135.0 |
|
AWM 1015 |
3 |
532/0.254 |
7.10 |
0.67 |
1.53 |
1.37 |
10.50±0.30 |
153.0 |
|
AWM 1015 |
2 |
665/0.254 |
8.60 |
0.53 |
1.53 |
1.37 |
11.8±0.30 |
180.0 |
▼ Certifications
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
|
ss section of conductor(mm²) |
Conductor structure(mm) |
Insulation thickness(mm) |
Approx. cable diameter(mm) |
Max resistance of conductor at 20℃ (Ω/km) |
|
0.5 |
16/0.19 |
0.6 |
2.1±0.1 |
39.0 |
|
0.75 |
24/0.19 |
0.6 |
2.3±0.1 |
26.0 |
|
1 |
32/0.19 |
0.6 |
2.5±0.1 |
19.5 |
