| Brand Name: | JIAXIN |
| Model Number: | 6242Y |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

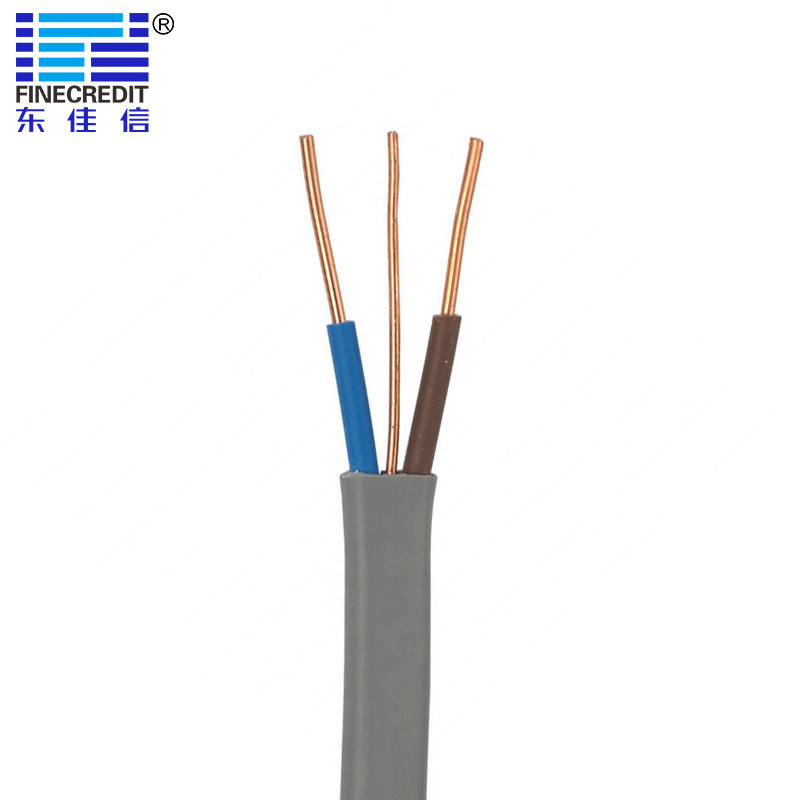

Flame Retardant EN 60228 Flat Electrical Cable 6242y 1.5mm2 2.5m2
▼ Flat Cable Twin and Earth Cable Power Cable 6242y 1.5mm2 2.5m2
1. CHARACTERISTICS
Voltage Rating Uo/U:300/500V
Temperature Rating:5°C to +70°C
2. Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
3. STANDARDS
BS 6004, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
4. Minimum Bending Radius
Fixed: 6 x overall diameter
5. PARAMETER
|
Type Designation |
Number and nominal cross-sectional area of conductors |
Class of conductor |
Conductor Type |
CPC nominal cross-sectional area of conductors |
CPC Class of conductor |
Conductor Type |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
|
6242Y |
2×1.0 |
1 |
RE |
1.0 |
1 |
RE |
0.6 |
4.2×7.8 |
63.1 |
|
6242Y |
2×1.5 |
1 |
RE |
1.0 |
1 |
RE |
0.7 |
4.6×8.6 |
78.9 |
|
6242Y |
2×2.5 |
1 |
RE |
1.5 |
1 |
RE |
0.8 |
5.4×10.3 |
116.5 |
|
6242Y |
2×4 |
2 |
RM |
1.5 |
1 |
RM |
0.8 |
6.2×11.9 |
161.3 |
|
6242Y |
2×6 |
2 |
RM |
2.5 |
1 |
RM |
0.8 |
6.9×13.4 |
221.8 |
|
6242Y |
2×10 |
2 |
RM |
4 |
2 |
RM |
1 |
8.4×17.0 |
356.2 |
|
6242Y |
2×16 |
2 |
RM |
6 |
2 |
RM |
1 |
9.6×19.8 |
522 |
6.PHOTO
▼ Company information:
Annual revenue is about 500 million US dollars.
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼ CNAS Labortory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
▼ Production equipment:
▼Payment
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
▼Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.
For big order,we will ship the goods by air or by sea.
