| Brand Name: | JIAXIN |
| Model Number: | 6242Y |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

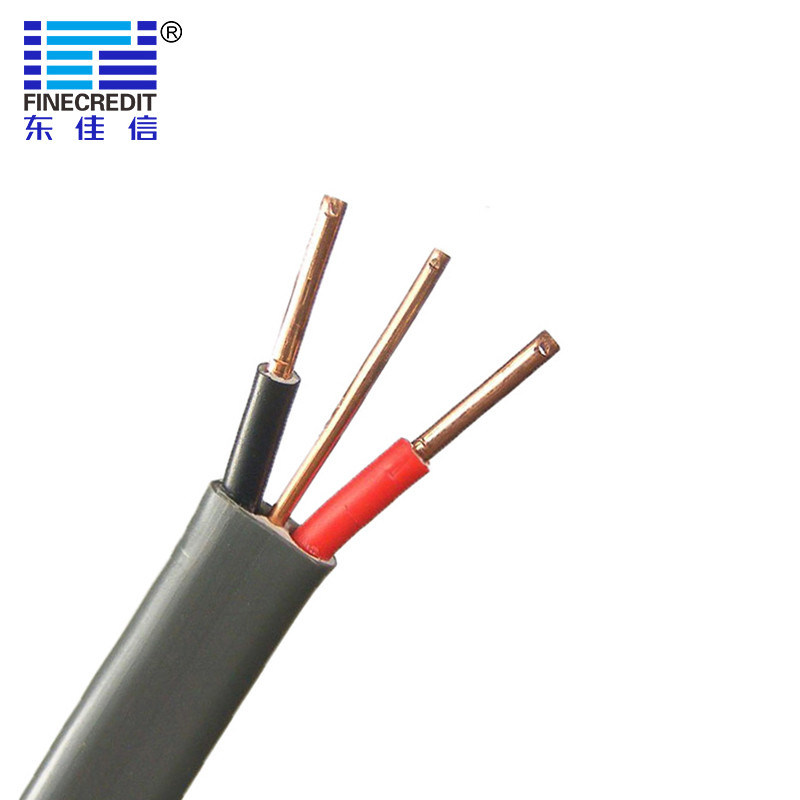

Grey 6242y Insulated Electrical Cable For Harmonised Lighting
▼ TWIN & EARTH 6242Y FLAT PVC HARMONISED LIGHTING POWER CABLE
1. APPLICATION
Domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue.Suitable for laying in conduit or trunking where mechanical protection is required.
2. Datas
|
Nominal cross-sectional area of conductors |
Class of conductor |
Conductor Type |
Number of Wires |
Maximum DCR @ 20ºC |
|
1.0 |
1 |
RE |
1 |
18.1 |
|
1.5 |
1 |
RE |
1 |
12.1 |
|
2.5 |
1 |
RE |
1 |
7.41 |
|
4 |
2 |
RM |
7 |
4.61 |
|
6 |
2 |
RM |
7 |
3.08 |
|
10 |
2 |
RM |
7 |
1.83 |
|
16 |
2 |
RM |
7 |
1.15 |
3. Construction
a. Conductor
RE: 1mm² to 2.5mm²: Class 1 solid copper
RM: 4mm² to 16mm²: Class 2 stranded copper
b. Circuit Protection Conductor (Earth)
1mm² to 2.5mm²: Class 1 solid copper
4mm² to 16mm²: Class 2 stranded copper
c. Insulation
PVC (Polyvinyl Chloride)
d. Sheath
PVC (Polyvinyl Chloride)
e. Sheath Colour
Grey
▼ CNAS Labortory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
▼ Production equipment:
▼ Packing&Delivery:
|
Packaging details : |
Delivery : |
|
|
|
|
|
|
Steel Wooden Drums |
Cable Drum In container |
shipped in 15 days after payment |
