| Brand Name: | JIAXIN |
| Model Number: | UL 2836 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |
Product Description

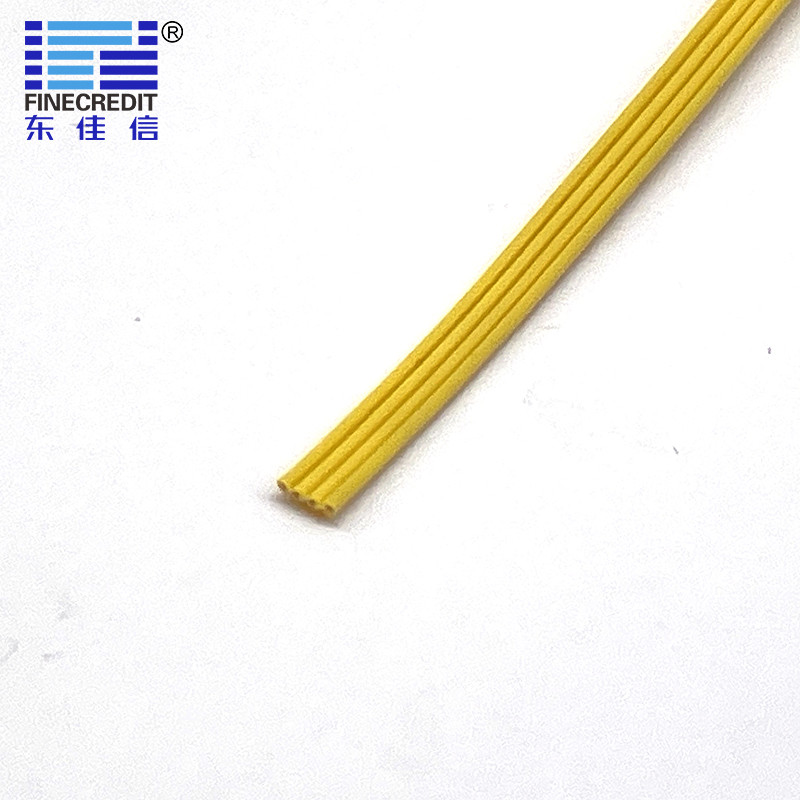

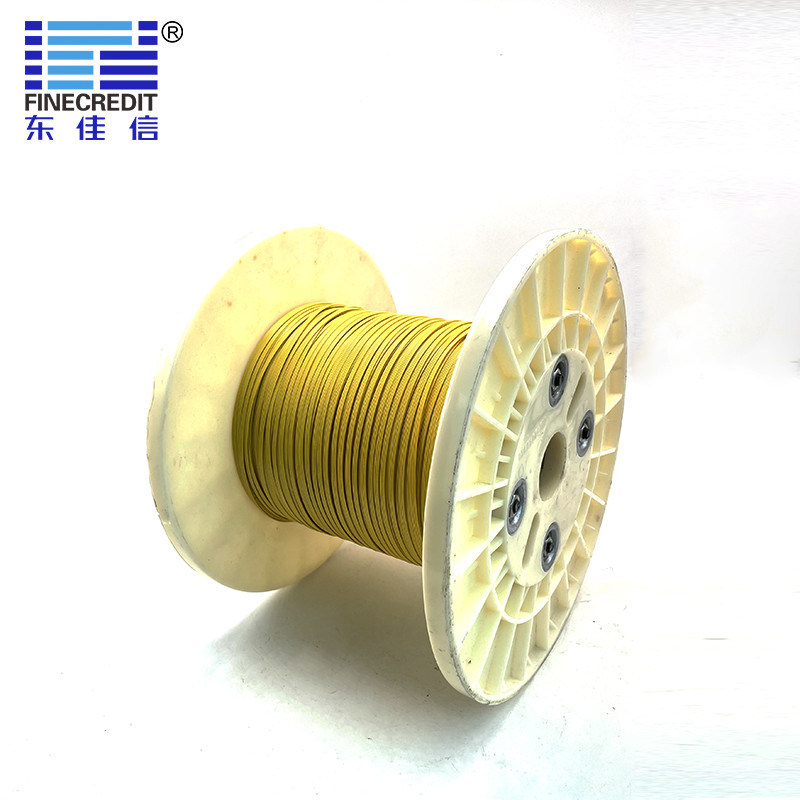

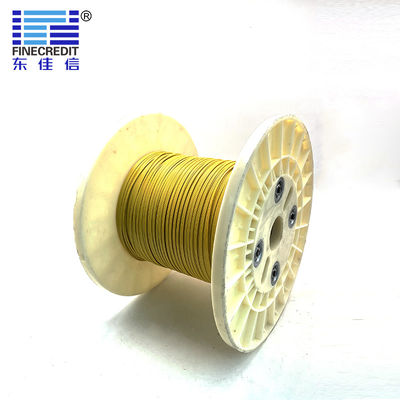

Parallel Cable with Extruded Integral Insulation
Application
Internal Wiring of Class 2 Circuits in Appliances and Electric Equipment.
Characteristic
1. Core Conductor: Solid & Strand , Bare Copper ,Tinned Copper or Mixed
2. Insulation: PVC
3. Popular sizes: 32AWG ~ 16AWG
4. Other specs:
a).Temperature rating: 80℃
b). Fire performance: FT2
c). Approval: ETL & CQC
Strong point
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
1. flexible to power supply
2. Easy to striped and replace
3. oil and chemical resistance
4. UV resistant
Standards Certificates
UL758 & CQC 1111-2020
▼ Company information:
30 years of experience in R&D, production, and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼ Payment:
We usually use T/T
T/T deposit before production and balance when shipment.
Payment terms: Western Union, Escrow, Paypal, T/T, L/C
▼ Shipping:
For big orders, we will ship the goods by air or by sea.
| ss section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 0.5 | 16/0.19 | 0.6 | 2.1±0.1 | 39.0 |
| 0.75 | 24/0.19 | 0.6 | 2.3±0.1 | 26.0 |
| 1 | 32/0.19 | 0.6 | 2.5±0.1 | 19.5 |
