KEMA 150Mm2 Flexible Rubber Cable
,
KEMA H07RN-F Flexible Rubber Cable
,
KEMA 16Mm2 rubber electrical cable
Product Description

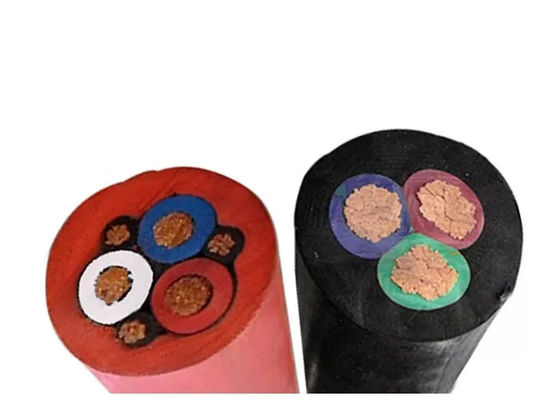

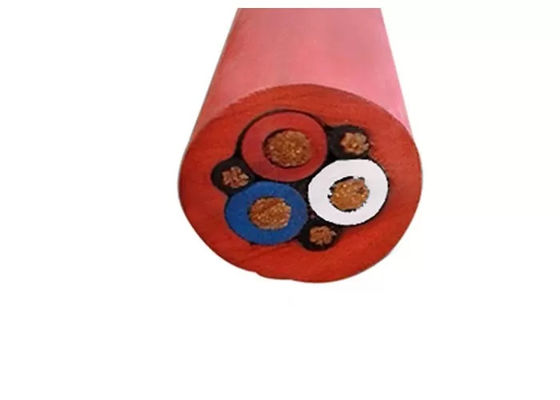

Red Rubber Sheathed Cable With Mobile Metal Shield Monitoring Soft Cable
voltage 8.7 / 10kv and below the mine with mobile metal shield monitoring soft cable
1. USE
This product is used for mining rubber sleeve soft cable series products.Suitable For rated voltage of 3.6 / 6kv underground mobile transformers and similar devices do power connection
2. Conditions of Use
The core allows a long working temperature of 85 degrees and the minimum bend radius of the wire is 6 times the cable diameter. Red sheath cable should not be exposed to the sun for a long time.
3. Model name and usage
Model
Name
USE
MYPTJ-3.6/6
Mine mobile metal shield monitoring of rubber cables
Rated voltage of 3.6 / 6kv underground mobile transformers and similar equipment, power connections
MYPTJ-6/10
Mine mobile metal shield monitoring of rubber cables
Rated voltage of 6 / 10kv underground mobile transformers and similar equipment, power connections
MYPTJ-8.7/10
Mine mobile metal shield monitoring of rubber cables
Rated voltage of 8.7/10kv underground mobile transformers and similar equipment, power connections

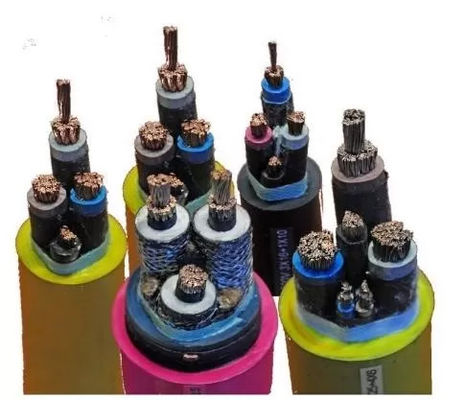

Type
Name
Power cores No.
Cross section of power cores
(mm2)
Rated
voltage
Rated
temp.
Min. bending radius
Executive standard
Application
MC-0.38/0.66
Rubber sheathed flexible cable for coal mining machine
3
16~50
0.38/0.66
60ºC
6 times of cable diameter
6 times of cable diameter
MT-818.2-1999&IEC
The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3 and below.
MCP-0.66/1.14
Shield rubber sheathed flexible cable for coal mining machine
3
35/50~95
0.66/1.14
60ºC
MCP-1.9/3.3
Shield rubber sheathed flexible cable for coal mining machine
3
35~95
1.9/3.3
90ºC
MCPT-1.9/3.3
Metal shield rubber sheathed flexible cable for coal mining machine.
3
35~95
1.9/3.3
90ºC
The cables are suitable for coal mining machine and similar equipment as power connecting wire, rated voltage 1.9/3.3KV and below
MCPTJ-1.9/3.3
Metal shield surveillance-type rubber sheathed flexible cable for coal mining machine.
3
35~95
1.9/3.3
90ºC
MY-0.38/0.66
Rubber sheathed movable flexible cable for coal mine
3+1
4~70
0.38/0.66
65ºC
The cables are suitable for all kinds of movable equipment in coal mining as power connecting wire rated voltages 0.66/1.14KV and below
MYP-0.66/1.14
Rubber sheathed screened movable flexible cable for coal
3+1
10~95
0.66/1.14
65ºC
MYPTJ-3.6/6
Flexible rubber-sheathed cables with metallic screens and monitoring core for coal mine
3
16/3~25/3
3.6/6
90ºC
The cables are suitable for power connecting wiring of movable transformers and similar equipments in mine, rated voltage 3.6/6KV
MZ-0.3/0.5
Rubber sheathed cable
for electric drill
3+1
2.5~4
0.3/0.5
65ºC
The cables are suitable for electric drill in coal mine as power connecting wiring, rated voltage is 0.3/0.5KV.
MZ-0.3/0.5
Rubber sheathed cable
screened for electric drill
3+1
2.5~4
0.3/0.5
65ºC
MYQ-0.3/0.5
Rubber sheathed light-duty movable flexible cable for coal mine
2~4
1.0~2.5
0.3/0.5
65ºC
The cables are suitable for light in laneway, interlock of transportation machine and equipments of control and signal with rated voltage 0.3/0.5KV.
MYQ-0.3/0.5
Rubber sheathed light-duty movable flexible cable for coal mine
7&12
1.0~2.5
0.3/0.5
65ºC
MVV-0.6/1
Copper core PVC insulation and sheath flame retardant power cable for coal mine
3
1.5~300
0.6/1
70ºC
16 times of cable diameter
r
The cables are used as power transmission line with rated voltage 0.6/1KV. They are suited to fixed laid in coal mine
MVV22-0.6/1
Copper core PVC insulation and sheath double-deck tape armored flame retardant power cable for coal mine
3
3+1
4
2.5~300
4~185
4~300
0.6/1
70ºC
MVV32-0.6/1
Copper core PVC insulation and sheath steel wire armored flame retardant power cable for coal mine
3
4~300
0.6/1
70ºC
MYJV-0.6/1
Copper core XLPE insulation and PVC sheath flame retardant power cable for coal mine
3
1.5~300
0.6/1
90ºC
MYJV22-0.6/1
Copper core XLPE insulation and PVC sheath double-deck flame retardant power cable for coal mine
3
3+1
4~300
0.6/1
90ºC
MYJV32-0.6/1
Copper core XLPE insulation and PVC sheath steel wire armored flame retardant power cable for coal mine
3
4~300
0.6/1
90ºC
The above parameters are only part of the parameters, for reference only.
