| Brand Name: | JIAXIN |
| Model Number: | H03VV-F、RVV |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 100KM/WEEK |

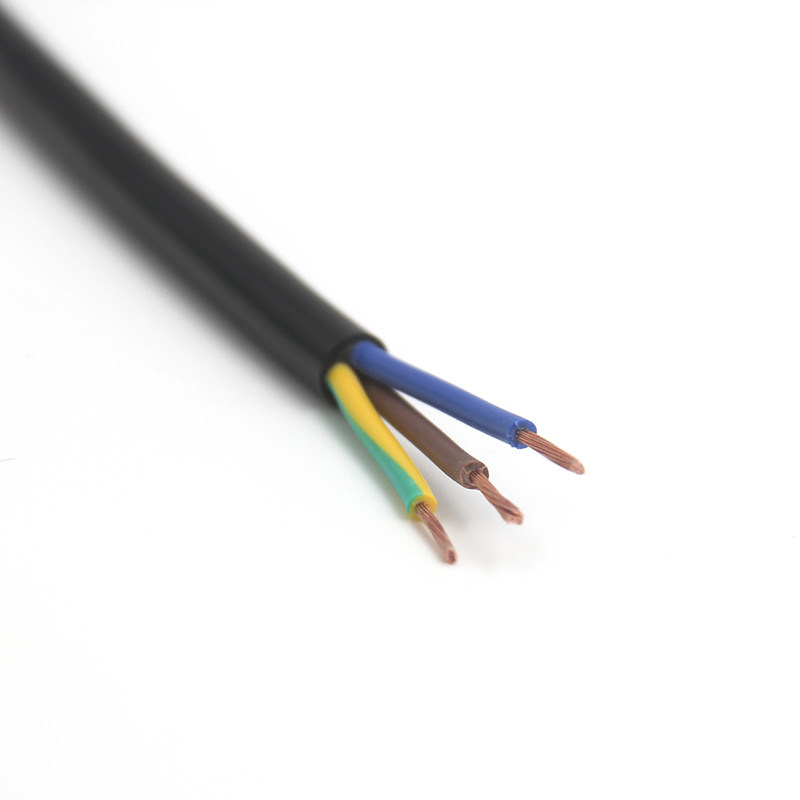

House Wire 2*0.75MM 1MM 1.5MM 2.5MM 4MM 6MM Flexible Power Cable RVVP RVV Cable H03VV-F
The cables are intended for the connection of domestic appliance to the fixed supply.
▼ Constraction:
1. Core Conductor: Stranded bare copper
2. Popular sizes: 2~4 core × 0.5~0.75mm²
3. Insulation&Jacket : PVC
4. Other specs:
a) Temperature rating: -15C up to +70℃
b). Fire performance: EN 50525-2-11:2011 ; IEC 60227
c). Approval: VDE CE CB CCC
d). Voltage suitable: 300/500V
3. Insulation is anti-oxidation and anti-aging, using native environmentally friendly polyvinyl chloride, not easy to deform and wear.
▼ Standards&Certificates:
EN 50525-2-11:2011 ; IEC 60227
▼ Technical parameters:
| Cross section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Sheath thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×0.75 | 24 | 0.6 | 0.8 | 6.3 | 26.0 |
| 2×0.75 | 24 | 0.6 | 0.8 | 4.0×6.4 | 26.0 |
| 2×1 | 32 | 0.6 | 0.8 | 6.7 | 19.5 |
| 2×1 | 32 | 0.6 | 0.8 | 4.2×6.8 | 19.5 |
| 2×1.5 | 30 | 0.7 | 0.8 | 7.7 | 13.3 |
| 2×2.5 | 49 | 0.8 | 1.0 | 9.3 | 7.98 |
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
