| Brand Name: | JIAXIN |
| Model Number: | CAT6 UTP |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |
Production Description:
Application:
These are structured cables for campus, riser and horizontal installations. Suitable for Ethernet Applications and compatible with all known connection systems. Ideal for high performance workstation applications including voice/ data systems, digital video, broadband and voice over internet protocol, etc.
Electrical Characteristics:
| Conductor Resistance | Max. 9.38 O /100m |
| Conductor Resistance Unbalance | Max. 5 % |
| Mutual Capacitance | Max. 5.6 nF/100m |
| Capacitance Earth Unbalance | Max. 330 pF/100m |
| Propagation Delay @ 1,10,100,250MHz | Max. 570, 545, 538 & 536 ns/100 m |
| Propagation Delay Skew 1 – 250 MHz | Max. 45 ns/100 m |
Features:
23 AWG Solid Cable
Plenum Jacket (CMP Rated)
550MHz Cable Performance
ETL Listed RoHS Compliant
Solid Pure Copper Conductor
4 Pair Un-shielded Twisted Pair (UTP) cable
EZ pull out, foot marked and easy to use a box
Meet and exceed ISO/IEC/RoHS standards and specifications
Colour Code:
| Pair 1 | : White/Blue -Blue; |
| Pair 2 | : White/Orange -Orange; |
| Pair 3 | : White/Green -Green; |
| Pair 4 | : White/Brown -Brown |
Cable Diameter , Standard Length & Packing:
| Cable Diameter | : 6.35 mm (Max.) |
| Available Packaging | : 305 mtr Pull box Or 500 / 1000 mtr spool |
| Available Colour | : Grey or As Per Customer Requirement |
Construction
 |
1. Conductor material: | Solid bare copper 0.57mm (23 AWG) |
| 2. Insulation material: | HDPE (High density Polyethylene) | |
| 3. Outer sheath material: | PVC | |
| 4. rip cord: | Nylon | |
| 5.Separator: |
cross filler |

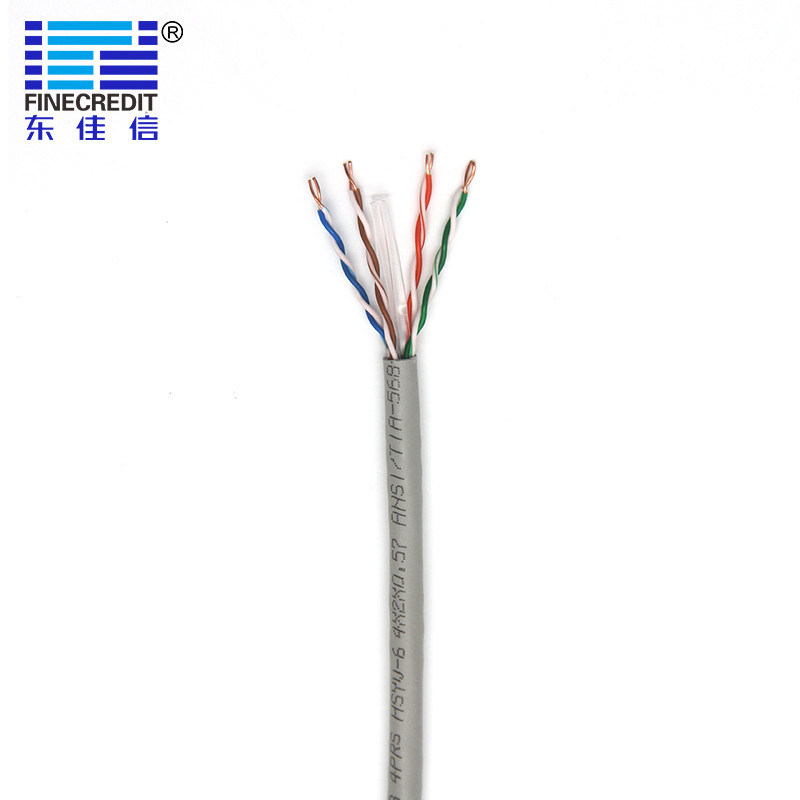

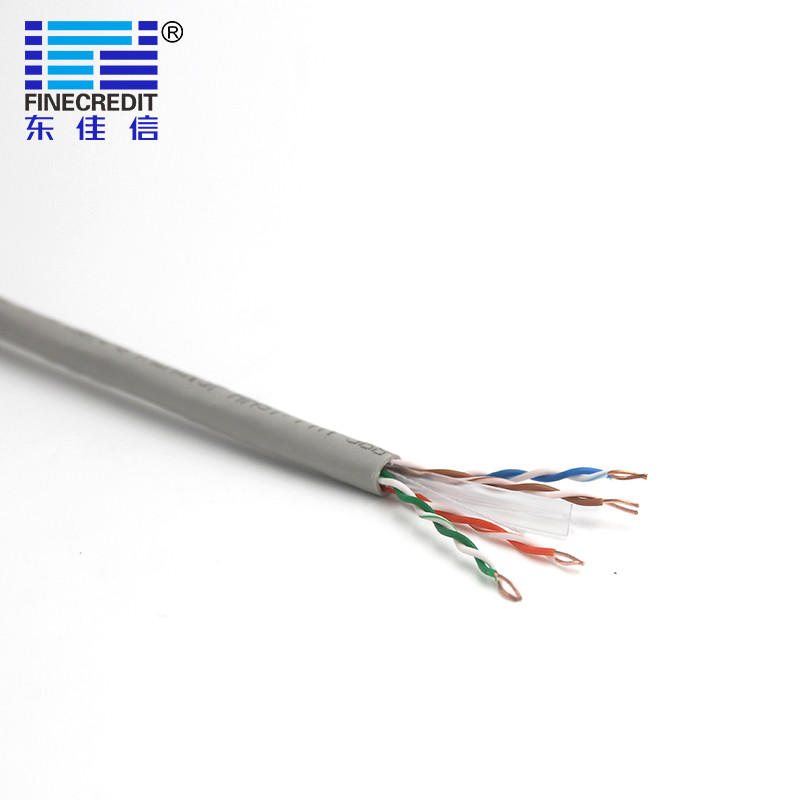

Product Image
▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
