| Brand Name: | JIAXIN |
| Model Number: | H05V-K / 60227 IEC 06(RV) |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

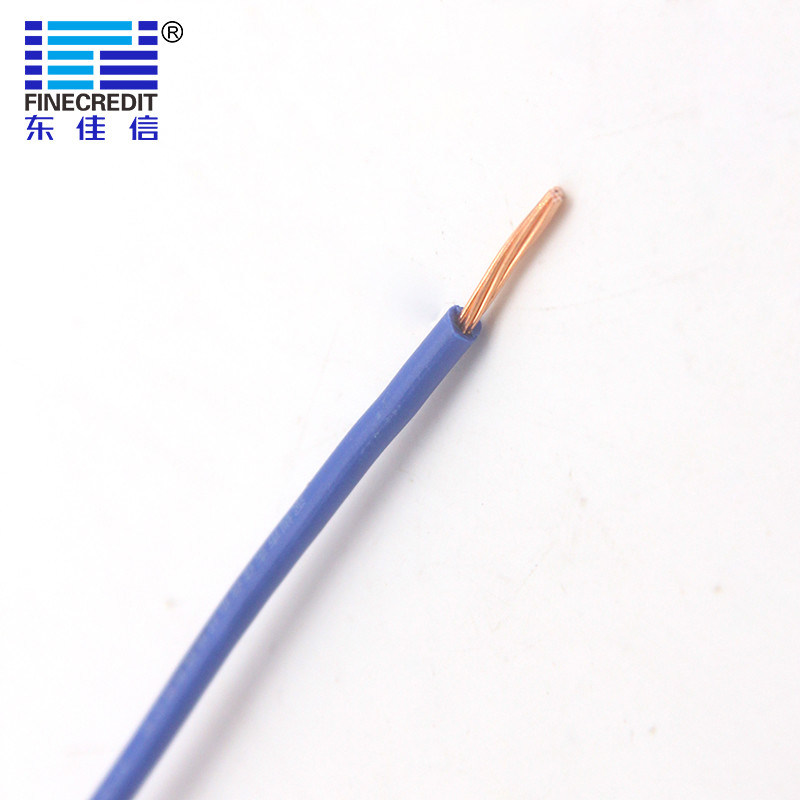

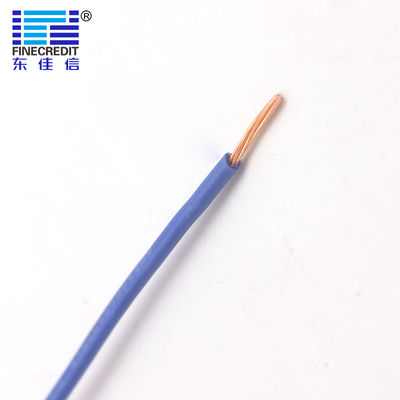

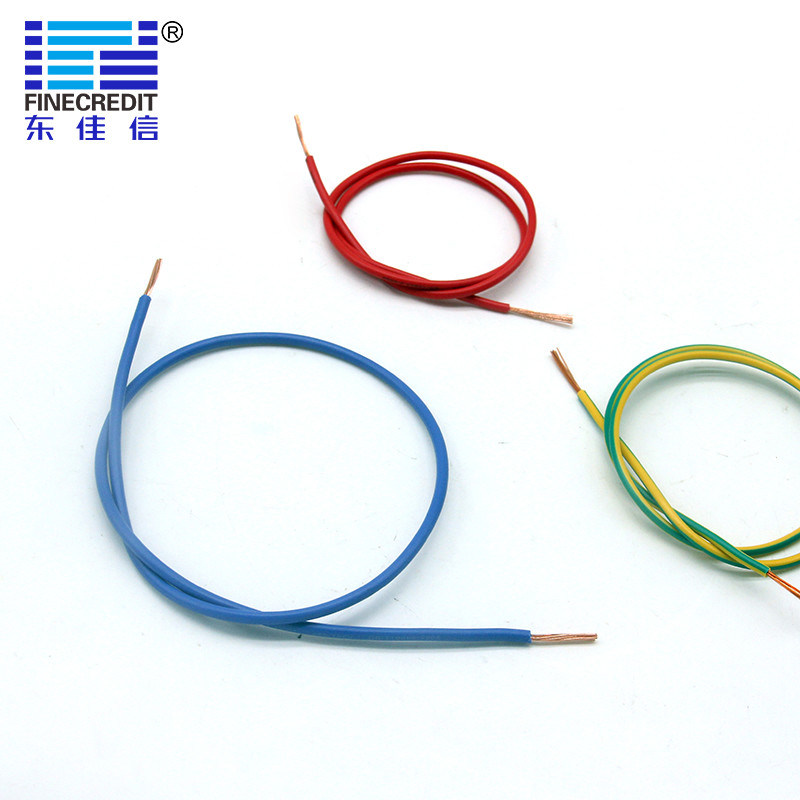

H05V-U,H05V-R,H05V-K,Copper Conductor PVC Insulated Wire
▼ Application:
The cables are intended for fixed wiring applications.
▼ Constraction:
| Core Conductor | Bare Copper |
| Popular sizes | single core × 0.5~0.75mm² |
| Cable conductor | Bare Stranded(Solid) Copper |
| Insulation&Jacket | PVC |
| Temperature rating | -15C up to +70℃ |
| Voltage suitable | 300/500V |
| Fire performance | EN 50525-2-31:2011；IEC 60227 |
| Approval | VDE CE CB CCC |
▼ Advantage:
The temperature resistance level is up to 70℃, and the life span is more than 30 years. It has the characteristics of acid and alkali resistance, oil resistance, moisture resistance, mildew resistance, electrical insulation, and abrasion resistance.
▼ Technical parameters:
| ss section of conductor(mm²) | Conductor structure(mm) | Insulation thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 0.5 | 16/0.19 | 0.6 | 2.1±0.1 | 39.0 |
| 0.75 | 24/0.19 | 0.6 | 2.3±0.1 | 26.0 |
| 1 | 32/0.19 | 0.6 | 2.5±0.1 | 19.5 |
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
