5 Cores Fire Resistant Cables Quality Electrical Cable of DJX cable

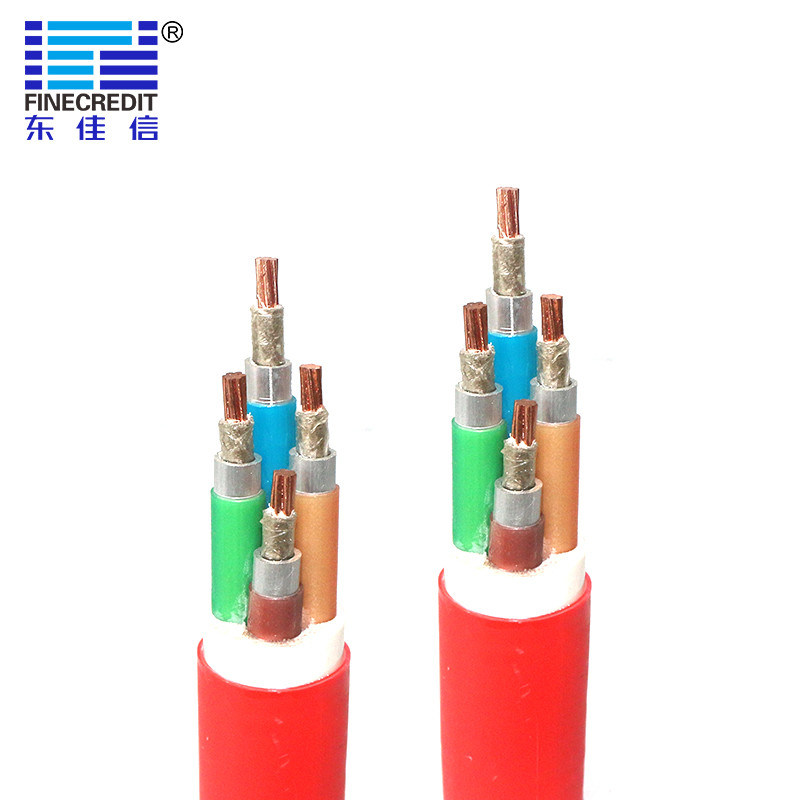

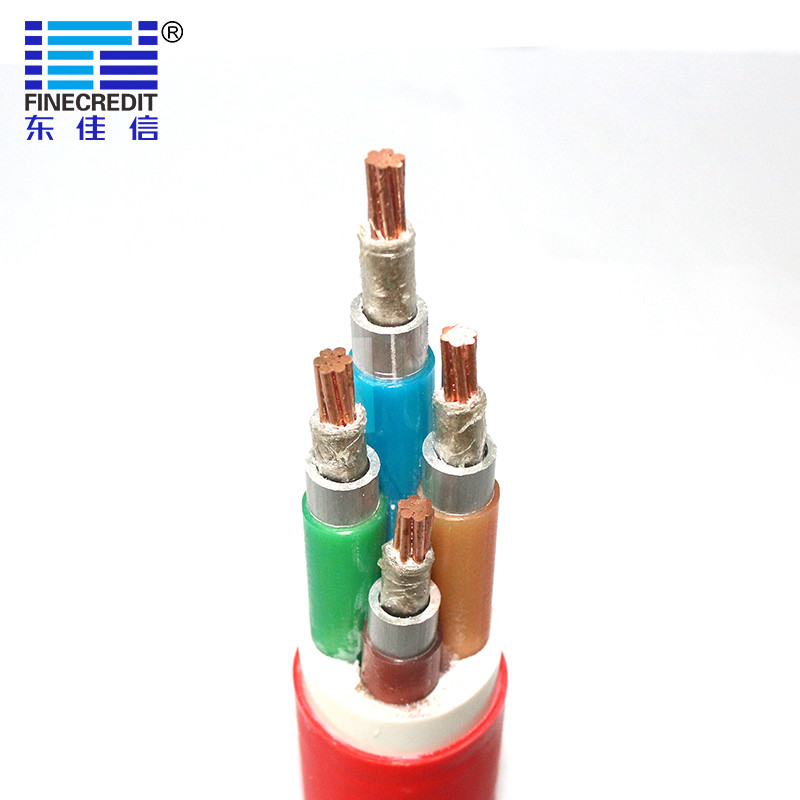

GN-BTLY 5 Cores 5x25mm² Mineral Insulated Cable , Fire Resistance Cables Aluminum Sheath


Production Description:

1. Installation conditions

During the cable laying, the ambient temperature must be above 0℃. Permissible bending radius should not be less than 15 times of outside diameter of cable. Besides being used for direct buried, it can be used in tunnels, cable trenches, cable bridges, cable trays and cable shafts.

2. Applications

It is suitable for transmission and distribution lines of important places such as high buildings, rail transits, hospitals, shopping malls, exhibition halls, carports, entertainment venues, data centers, etc.

3 . Properties and advantages

1) fireproof performance

The cable is of excellent fire resistance. It conforms to the highest fire resistance rating 950℃ 3h specified in British Standard BS6387. Besides, it can withstand water spray and mechanical impact. As a result, it is full beyond the fire resistance requirement 750℃ 90min specified in GB/T19216.21 and GB/T19216.11.

2) longer continuous length

The length of single core and multi-core cable can meet the demands of power supply. The continuous length of each cable can be more than 1000m.

3) larger cross-section area

The maximum cross-section area of single core cable can be 630mm². The maximum cross-section area of multi-core cable can be 300mm².

4) flexibility

The cable can be coiled in cable trays. bending radius≤20D(D means the outside diameter of cable)

5) smoke-free and nontoxic during combustion

The cable will not produce harmful gas or cause secondary pollution. It is an environment-friendly product.

6) good safety performance

Fireproof cable can maintain normal power supply in the flame so that people can use fire fighting apparatuses and escape facilities. In this way, personal security will be reliably guaranteed and economic losses will be reduced.

7) longer service life

Inorganic insulating material is of high temperature resistance and ageing resistance. Its service life is many times longer than that of organic insulated cable. At normal operation, its maximum service life will be more than 100 years.

8) convenient transportation and installation

The transportation and installation of fireproof cable including the installation of accessories, similar as those of ordinary cable, is easy.

▼ Cable Drum Data:

CABLE DRUMS	D1=Flange Diameter(mm)	W=Useful Width (mm)	D2=Barrel Diameter(mm)
	1000	700	500
	1100	700	550
	1200	700	600
	1400	750	710
	1600	900	900
	1800	1120	1000
	2400	1150	1300
