| Brand Name: | DONGJIAXIN, DJX |
| Model Number: | PV 4mm2 6mm2 10mm2 16mm2 |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

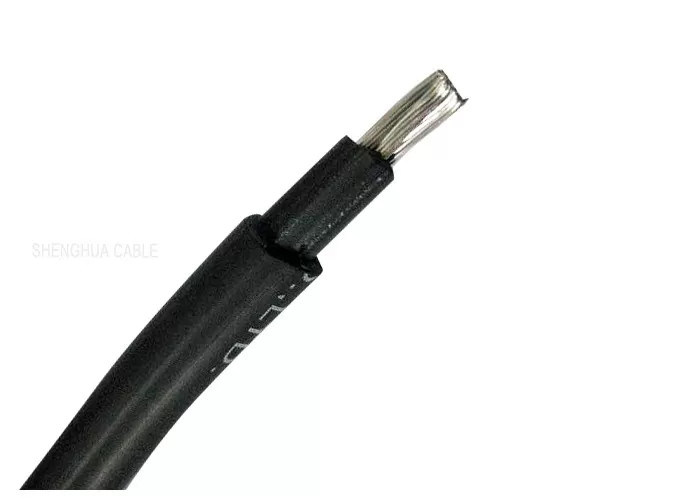

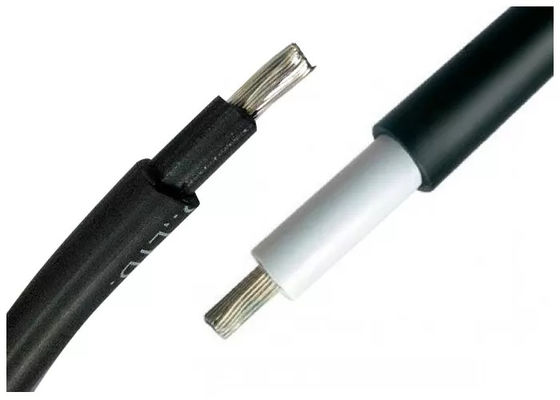

Professional XLPO Insulated Solar PV Wire 2 Core CE TUV Certification
Industrial Solar Panel 600V - 1000V PV Wire Electron Beam Cross Linked Polyolefin Insulation
Application
Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment
Construction
| Core Conductor | Tinned annealed copper (stranded core) |
| Popular sizes | 1 core x2.5/4.0/6.0/10.0/16.0/25.0/35.0mm2 |
| Cable conductor | Stranded tinned annealed copper |
| Insulation | Electron-beam cross-linked Polyolefin(XLPO) |
| Jacket | XLPO/ PE (black, red) |
| Other specs | a) Temperature rating: -40C up to +120C |
| b) Fire performance: IEC 60332-1, UL1581 VW-1 | |
| c) Approval: TUV Rheinland 2PfG 1169 1.5mm2 to 50mm2 | |
| d) High resistance against hear, cold, abrasion, UV, Ozone and hydrolyes. Halogen free, flame ratardant | |
| e) Voltage suitable: 600-1000V |
Advantage:
With high resistance against heat, cold, ozone, UV, oil, microorganism, abrasion, acid & alkaline; Flame free, flexible, easy to strip, extremely mechanical robust, long lifespan etc
PV Cable Market Future:
Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Huangrey, France, Australia, India etc
Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing
Technical Parameter
| Section Area (mm2) |
External Diameter (mm) |
Current Carring Capacity (A) |
| 4 | 6.1 | 55 |
| 6 | 7.2 | 70 |
| 10 | 9.0 | 98 |
| 16 | 10.2 | 132 |
Product Package
Keywords: #Cable #Wire #Wireandcable #Electricalcable #Flexiblecable #XLPEcable #LANcable #Controlcable #LSZHcable #DJXcable #Cablemanufacturer #Cablefactory #Cablesupplier #Cableprovider #Cablewholesale #Rubbercable #Powercable #Solarcable #Mineralinsulatedcable #Armouredcable #Armoredcable
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
▼ Delivery Port :
|
|
|
| Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
Testing process
