| Brand Name: | DONGJIAXIN |
| Model Number: | YJV, YJV22 12/24KV |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |

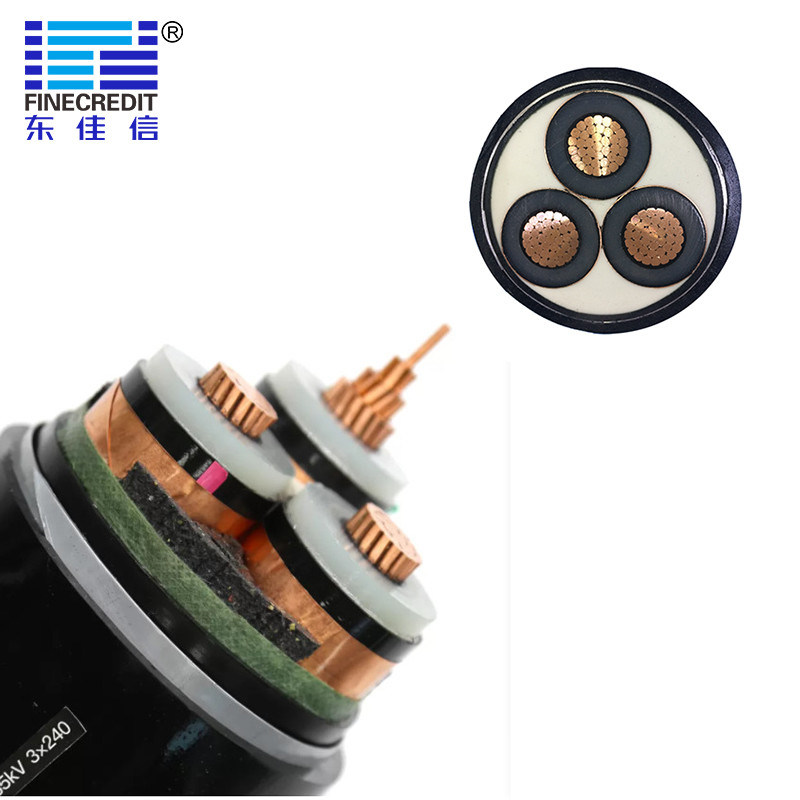

12/20(24)KV XLPE Insulated Medium Voltage Power Cable To IEC 60502
Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban
underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises,
and power transmission lines across rivers and seas.
Medium voltage cables refer to power cables with voltages between 3kv and 35kv. It is
suitable for transmission and transformation lines, substations, main and secondary
power distribution and transmission and distribution lines with rated voltage of 6kV and above.
1. Standards
International: IEC 60502, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,VDE and ICEA upon request

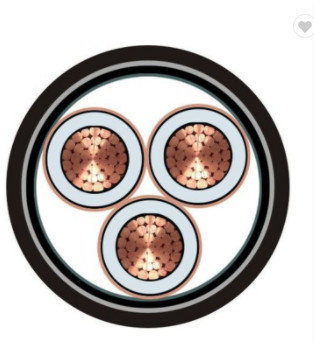

2. Construction
-- Conductor : Compact stranded copper conductor , Cl 2 as per IEC 60228
-- Conductor Screen : semi-conductor
-- Insulation : XLPE ( cross-linked polyethylene ) rated at 90 " C
-- Insulation Screen : semi-conductor
--Screen : Copper tape
--sheath : PVC or fr-pvc type ST to IEC 60502 , black
3. Code Designation
YJ : XLPE insulation
V : PVC sheath
ZR : Flame resistant
4. Applications
For laying indoors and outdoors . Able to bear certain traction during installation , but not external mechanical forces . Laying single core cable in magnetic ducts is not allowed.
5. Technical data
Rated voltage: 6/10kv
Maximum Conductor Temperature: under normal (90 ℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.
Min. Ambient Temp.: The cable shall be pre heated if the ambient temperature is below 0℃
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Service
1. Customer is God. We will cherish every client, every cooperation by heart.
2. Free pre-sales service. We will provide the best proposal for each client.
3. Good sales service. We will provide free relative product operation, maintenance tips, and installation commissioning
technical advisory service when establishing cooperation relationships with clients.
4. Product warranty period is 2 years.
5. We guarantee to solve your problems within 24 hours in Shenzhen, 72 hours for other districts.
6. 24 hours hot-line telephone service. We will appoint a professional person to answer your question timely.
Testing process
