| Brand Name: | DONGJIAXIN |
| Model Number: | N-YJV22 8.7/15KV |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |
It has excellent heat resistance and good insulation properties. Using XLPE material, the hardness, rigidity, wear resistance and impact resistance are improved, and it has strong acid and alkali resistance and oil resistance.

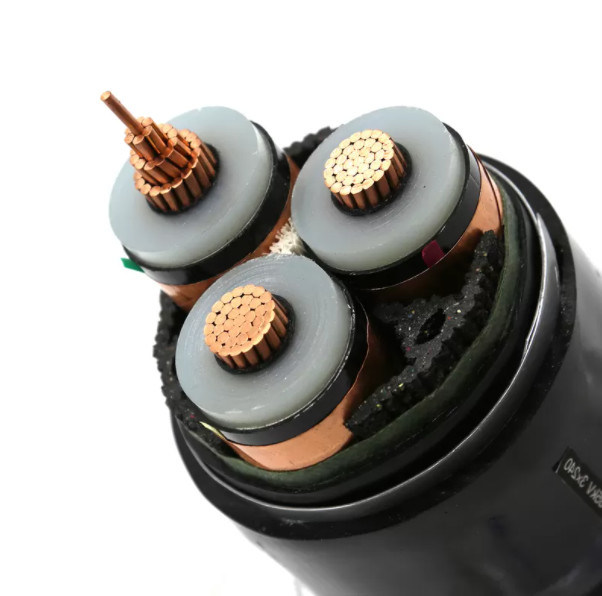

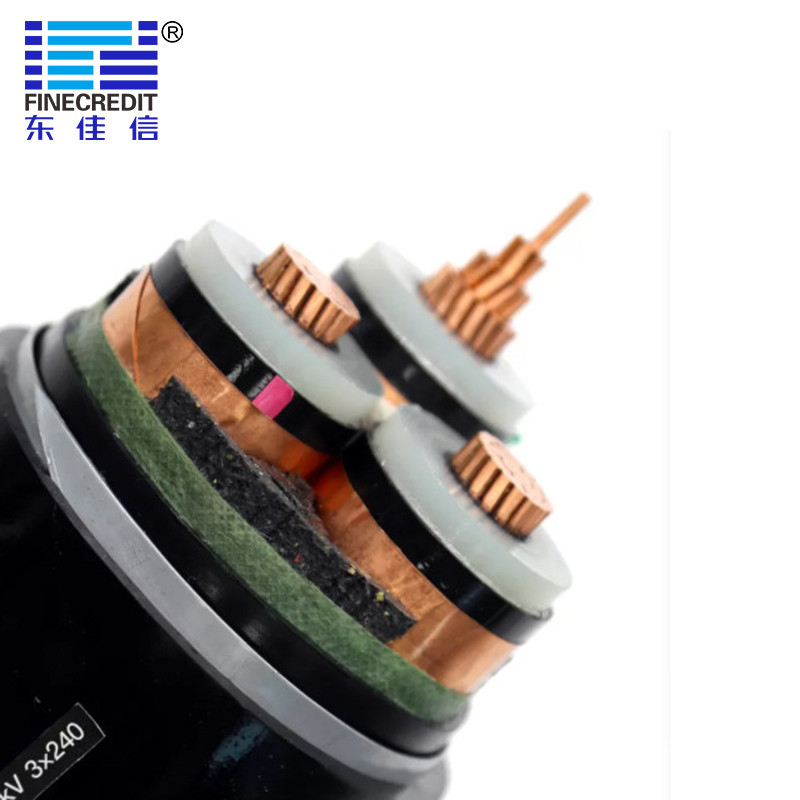

Construction
| Conductor | Plain annealed copper wire,solid, Class 1,strand, Class 2, meets to GB/T 3956, IEC 60228,BS 6360. |
| Conductor Screen | Semi-conductor (MV only) |
| Insulation | XLPE |
| Insulation Screen | Semi-conductor (MV only) |
| Metallic Screen | Copper tape |
| Filler | PP Yarn, or Paper |
| Separator | Binding tape |
| Inner sheath | Extruded PVC (MV only) |
| Armouring | Steel Tape Armoured (STA) |
| Sheath | PVC(LSZH) |
Characteristics
| Rated voltage(KV) | 3.6/6 | 6/6 | 6/10 | 8.7/10 | 8.7/15 | 12/15 | 12/20 | 18/20 | 18/30 | 21/35 | 26/35 | |
| Core Number | 1 core, 3 core | |||||||||||
|
Cross-section mm2 |
1C | 25~800 | 35~800 | |||||||||
| 3C | 25~400 | 35~400 | ||||||||||
Application
Cross-linked polyethylene insulated cables due to their excellent electrical insulation properties and high temperature resistance, cross-linked cables below 10kV are widely used to connect 10kV cable lines in the ring network, such as electric power, construction, mining, metallurgy, petroleum, chemical, transportation, etc.
Standards&Certificates: IEC 60502-2
