| Brand Name: | DONGJIAXIN |
| Model Number: | H05VV-F |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, T/T |
| Supply Ability: | 100KM/WEEK |

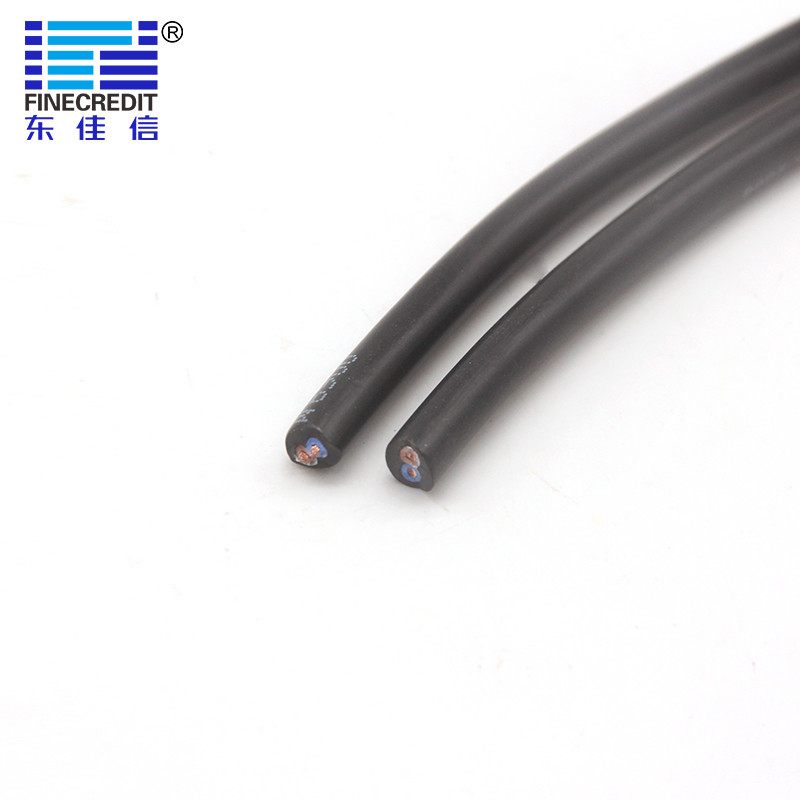

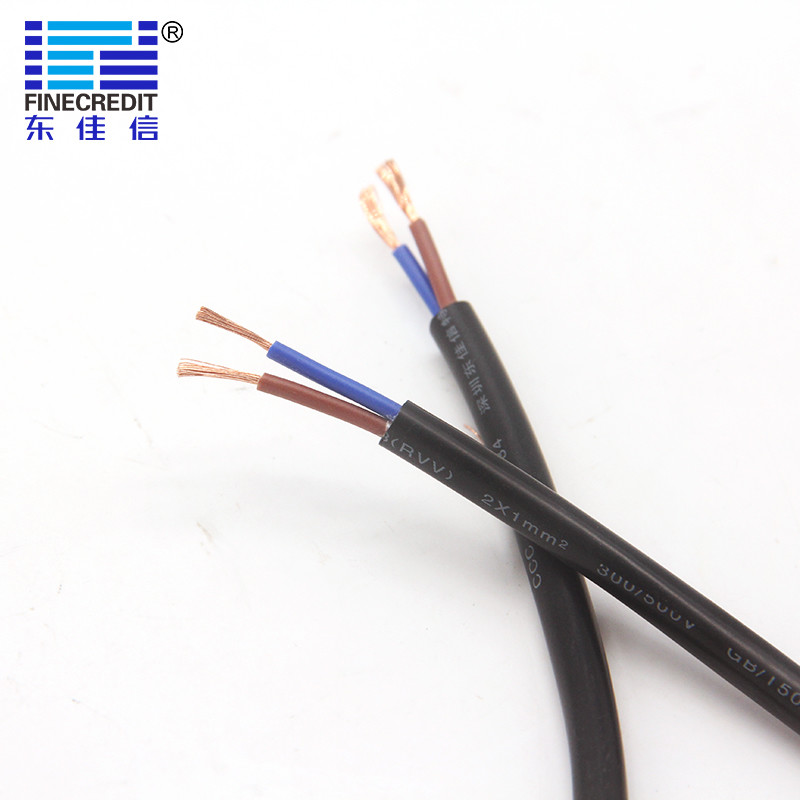

Flexible cables are used in auxiliary circuits & euipments, CCTV power supply, etc. Voltage range includes 300/500V. These cables are manufactured to BS & IEC standards.
* Flexible cables Construction
– Annealed Plain Copper Conductor (Class 5)
– PVC or Heat Resistant PVC Insulation
– PVC or Heat Resistant PVC Sheath
* Flexible cables Applicable Standards
– BS EN 50525-2-11 (previously BS 6500), IEC 60227-53
Operating Temperature
– 70°C for general purpose cables
* Flexible cables Properties
– IEC 60227-5 GB/T 5023.5-2008
* Flexible cables Application
– For household appliances under medium mechanical stress in damp & wet conditions.
Type H05VV‐F
Rated Voltage 300/500 V
Product Range
2 core – 0.75 to 2.5 mm2
3 core – 0.75 to 2.5 mm2
4 core – 0.75 to 2.5 mm2
5 core – 0.75 to 2.5 mm2
2 CORE CABLE PHYSICAL AND ELECTRICAL CHARACTERISTICS
| ss section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 2×0.75 | 24 | 0.6 | 0.8 | 6.3 | 26.0 |
| 2×0.75 | 24 | 0.6 | 0.8 | 4.0×6.4 | 26.0 |
| 2×1 | 32 | 0.6 | 0.8 | 6.7 | 19.5 |
| 2×1 | 32 | 0.6 | 0.8 | 4.2×6.8 | 19.5 |
| 2×1.5 | 30 | 0.7 | 0.8 | 7.7 | 13.3 |
| 2×2.5 | 49 | 0.8 | 1.0 | 9.3 | 7.98 |
3 CORE CABLE PHYSICAL AND ELECTRICAL CHARACTERISTICS
| section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 3×0.75 | 24 | 0.6 | 0.8 | 6.7 | 26.0 |
| 3×1 | 32 | 0.6 | 0.8 | 7.1 | 19.5 |
| 3×1.5 | 30 | 0.7 | 0.9 | 8.4 | 13.3 |
| 3×2.5 | 49 | 0.8 | 1.1 | 10.1 | 7.98 |
4 CORE CABLE PHYSICAL AND ELECTRICAL CHARACTERISTICS
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 4×0.75 | 24 | 0.6 | 0.8 | 7.3 | 26.0 |
| 4×1 | 32 | 0.6 | 0.9 | 8.0 | 19.5 |
| 4×1.5 | 30 | 0.7 | 1.0 | 9.4 | 13.3 |
| 4×2.5 | 49 | 0.8 | 1.1 | 11.0 | 7.98 |
5 CORE CABLEPHYSICAL AND ELECTRICAL CHARACTERISTICS
| Cross section of conductor(mm²) | Conductor structure | Insulation Thickness(mm) | Copper sheath thickness(mm) | Approx.cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| 5×0.75 | 24 | 0.6 | 0.9 | 8.2 | 26.0 |
| 5×1 | 32 | 0.6 | 0.9 | 8.7 | 19.5 |
| 5×1.5 | 30 | 0.7 | 1.1 | 10.4 | 13.3 |
| 5×2.5 | 49 | 0.8 | 1.2 | 12.3 | 7.98 |
Testing process
Keywords: #Cable #Wire #Wireandcable #Electricalcable #Flexiblecable #XLPEcable #LANcable #Controlcable #LSZHcable #DJXcable #Cablemanufacturer #Cablefactory #Cablesupplier #Cableprovider #Cablewholesale #Rubbercable #Powercable #Solarcable #Topcablemanufacturer #Householdcable #Industrialcable #armouredcable
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
▼ Company information:
30+ years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 100,000 square meters.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
