| Brand Name: | DONGJIAXIN |
| Model Number: | YJV18/30KV |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100KM/WEEK |

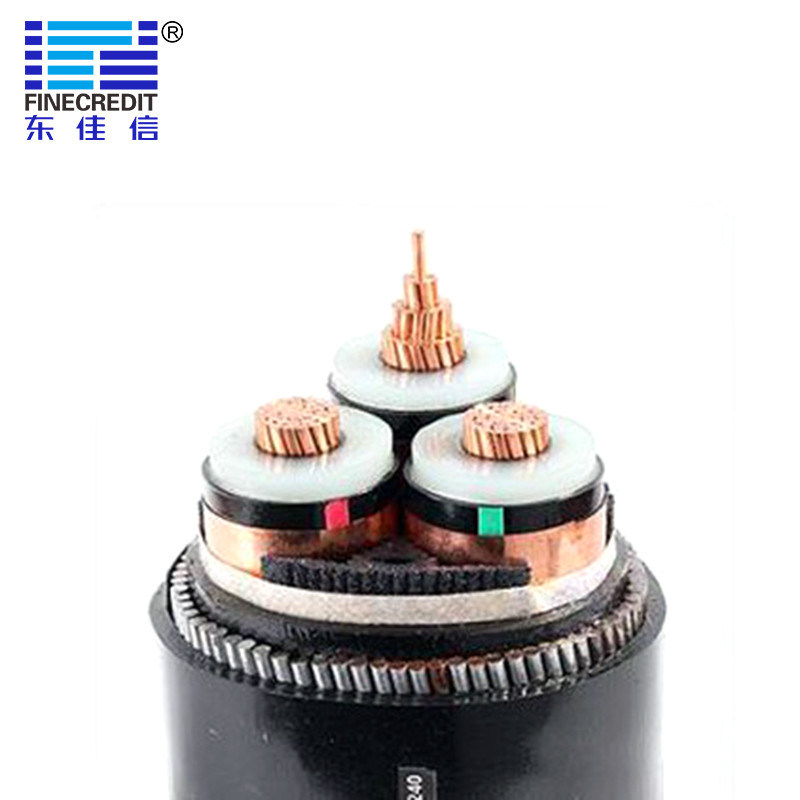

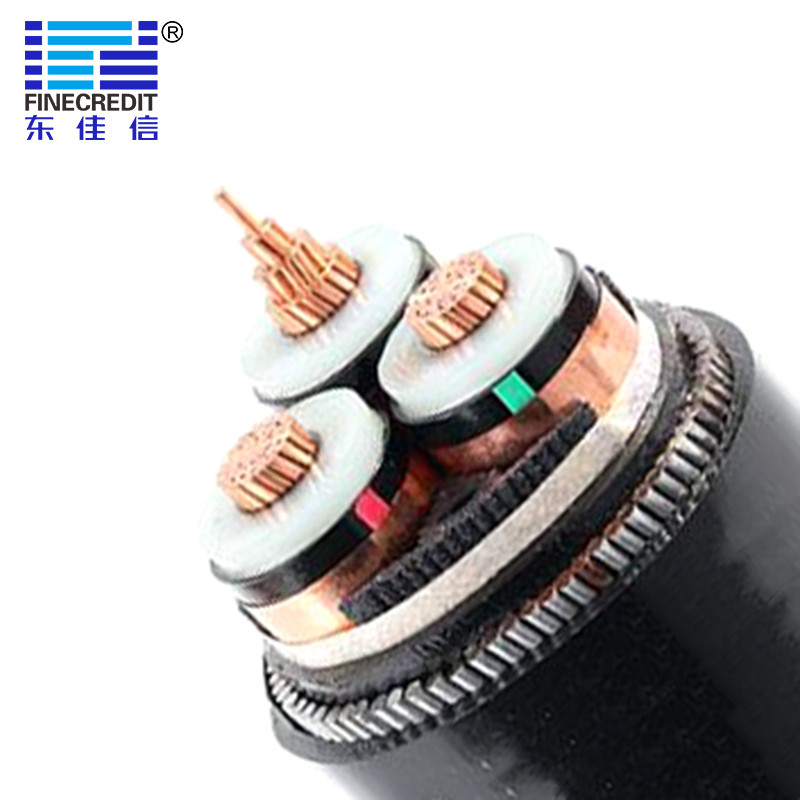

Due to its excellent electrical insulation performance and high temperature resistance, cross-linked polyethylene cables below 10kV are widely used to connect 10kV cable lines in ring networks, such as electric power, construction, mining, metallurgy, petroleum, chemical, transportation, etc.
▼ Construction
 |
1. Conductor material: | Copper |
| 2. Sheath Material | PVC | |
| 3.Insulation Material | XLPE | |
| 4.Filler | Fiberglass tape or non-woven fabric | |
| 5.Armour | STA, SWA |
▼ Product Description
1. Conductor Material: Copper,
2. Nominal Sectional Area (mm2 / sq mm): 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630, 800
6. Armoring: Non-Armored, Galvanized Steel Wire Armored (BS 5467 Standards), Steel Tape Armored, etc.
7. Rated Voltage (KV): 0.6/1, 1/1, 1.8/3, 3/3, 3.6/6, 6/6, 6/10, 8.7/10, 8.7/15, 12/15, 12/20, 18/20, 18/30, 21/35, 26/35
8. Maximum Working Temperature: 90°C
9. Features: Flexible, Fire-Resistant, Heat-Resistant, Low Smoke and Fume, Low Smoke Zero Halogen, High Temperature, etc.
CNSA Laboratory
3S Safety Cable Advanced Institute of Technology with 7 laboratories, has been established in Finecredit Group,
including Electrical Performance Laboratory, Mechanical Performance Laboratory, Combustion Test Laboratory,
High Frequency Laboratory, etc. Equipped with over 50 advanced equipment and technologies.
▼ Delivery Port :
|
|
|
| Port of Shenzhen | Port of Hongkong |
Port of Guangzhou |
