| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JIAXIN |
| Certification: | TUV |
| Model Number: | PV1-F/H1Z2Z2-K |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Steel wooden drum |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100KM/Week |

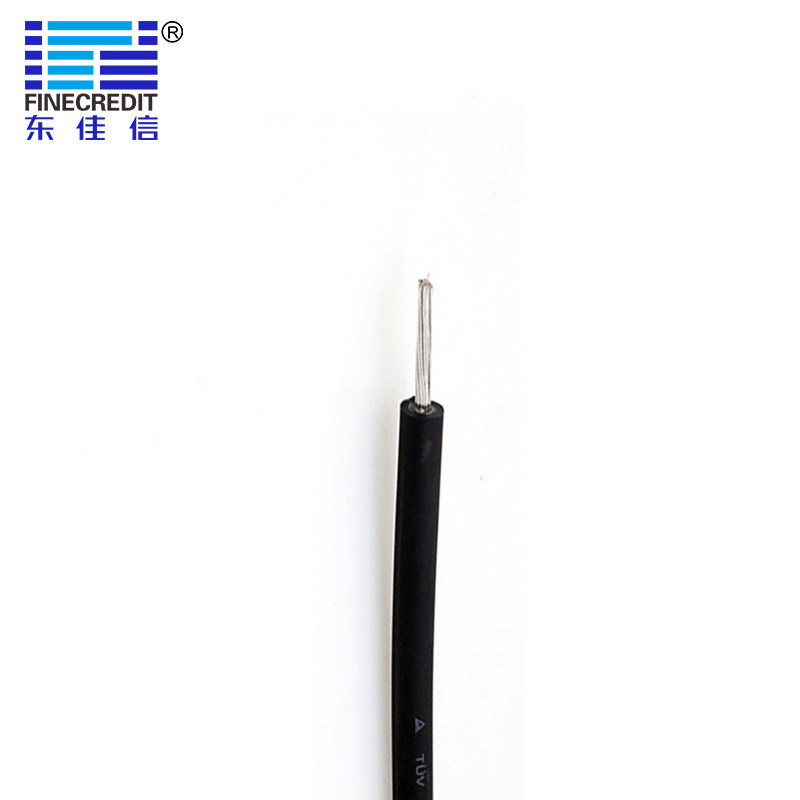

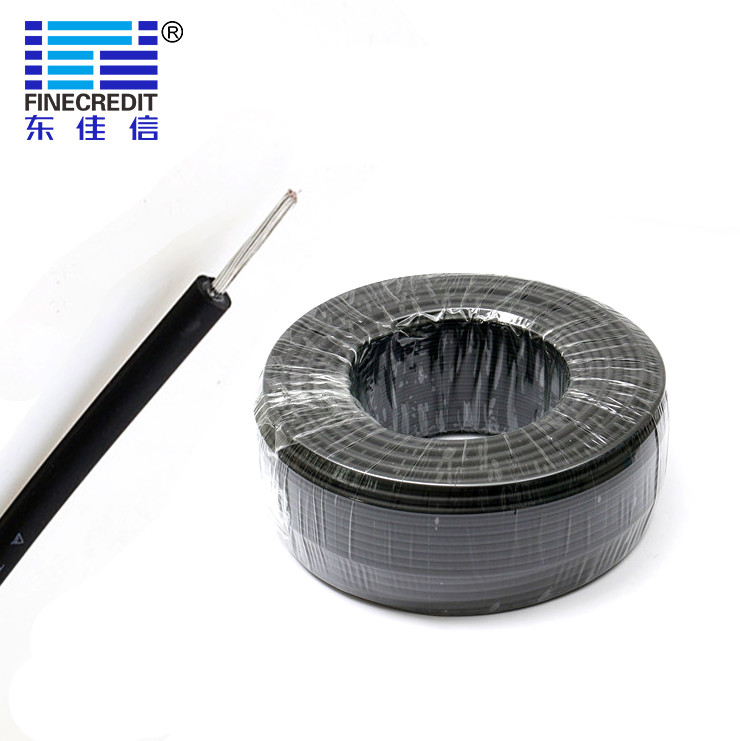

| Model Name: | Photovoltaic Cable PV1-F | Popular Sizes:: | 1core × 4mm² |
|---|---|---|---|
| Rated Voltage: | 1000V DC 1500V DC | Cable O.D: | 5.6 |
| 20℃ Insulation Resistance MΩ·km: | 5.09 | Conductor Type: | Tinned Copper |
| Sheath: | Sunlight Resistant PVC | Application: | Solar Power Station, Solar Panel ,solar System |

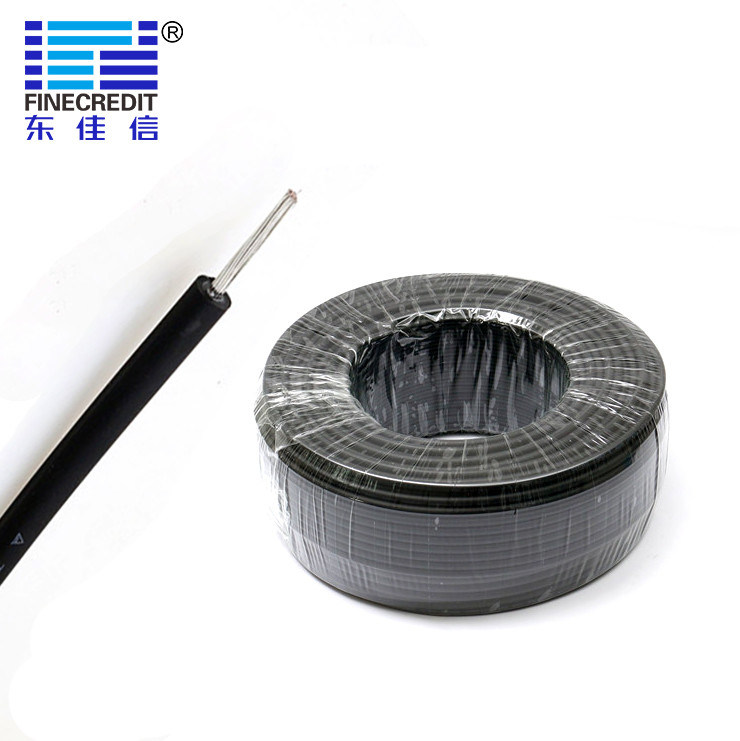

| Highlight: | 1core 4.0mm2 Solar PV Cable,1core 1500V Solar PV Cable,1500V DC Photovoltaic Cable |
||
Construction:
Insulation colour: Black
Sheath colour: Black/Red
Operating temperature: -40°C - 90°C on the conductor
Overload temperature: 120°C on the conductor
Expected lifetime: >25 years
Rated voltage: Uo/U AC 0.6/1 kV DC 1,5 kV
Max temperature in case of short circuit: 250°C on the condu ctor (max duration 5 seconds)
Min bending radius: 4 x outer diameter of the cableMax
installation temperature: -25°C
Applications:
Specifically designed for connecting photovoltaic system components inside and
outside of building and equipment with high mechanical requirements and extreme weather
conditions .For permanent installations.
Advantage:
1. 99% High-purity Oxygen-free Copper:High quality tin-plated copper, high purity, anti-aging,
high Electrical conductivity, low loss, strong current carrying capacity, High corrosion resistance,
and can adapt to the outdoor harsh Environment.
2. Low Eccentricity:hickness uniformity, effectively prevent the current breakdown Fire, to ensure safety.
3. High-performance Polymer Materials:Insulating and jacket all use environmentally friendly low-smoke
Halogen-free flame-retardant cross-linked polyolefin materials, With wear-resistant, high temperature, oil,
ozone, UV, high flame Retardant properties.
Data Sheet:
| Specification(mm²) | Conductor stracture | Insulation thickness(mm) | Sheath thickness(mm) | Approx.cable diameter | Max resistance of conductor at 20℃ (Ω/km) | Max resistance of conductor at 20℃ (Ω/km) |
| 4 | 77 | 0.7 | 0.8 | 5.6 | 5.09 | 580 |
▼ Company information:
Annual revenue is about 500 million US dollars.
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
